CANTEK AF04 TRACK FEEDER

1 Phase

$2,205.00

An all-purpose feeder intended to assist with feeding small workpieces,

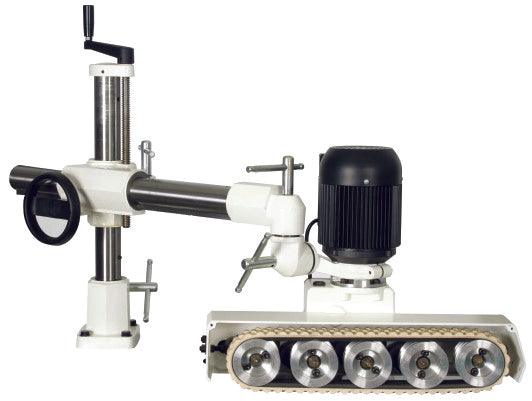

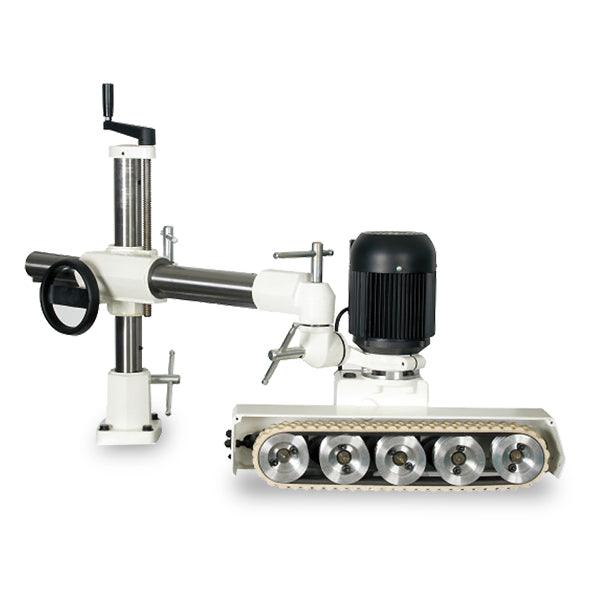

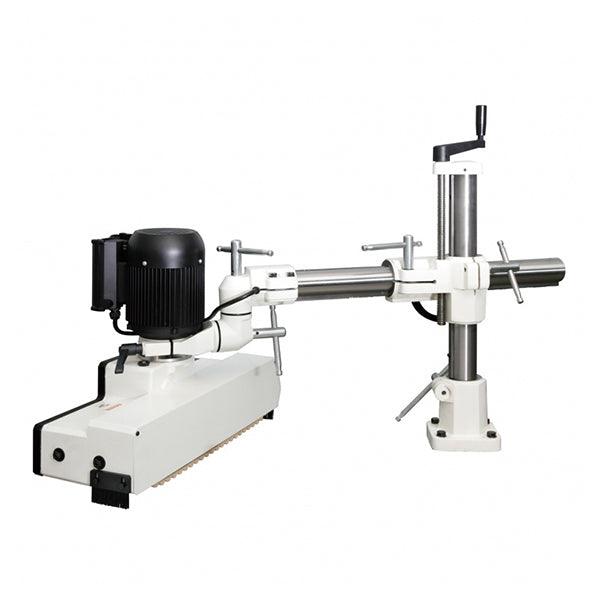

The Cantek AF04 Track Feeder is specifically designed for feeding small workpieces which can not be fed properly using a conventional 3 and 4 roller feeders. The (3) synthetic rubber belts run on (5) feeder wheels which are closely coupled together. The result is the workpiece is held between the rollers allowing for the feeding of short and/or small material. The universal stand allows you to easily adjust the height and position of the feeder. It can also be positioned from a horizontal to vertical feed. The AF04 can be easily adapted to your shaper or table saw.

Why Cantek AF04 Track Feeder?

Designed for feeding shorter pieces or for cross feeding pieces 90 degrees to cutterhead

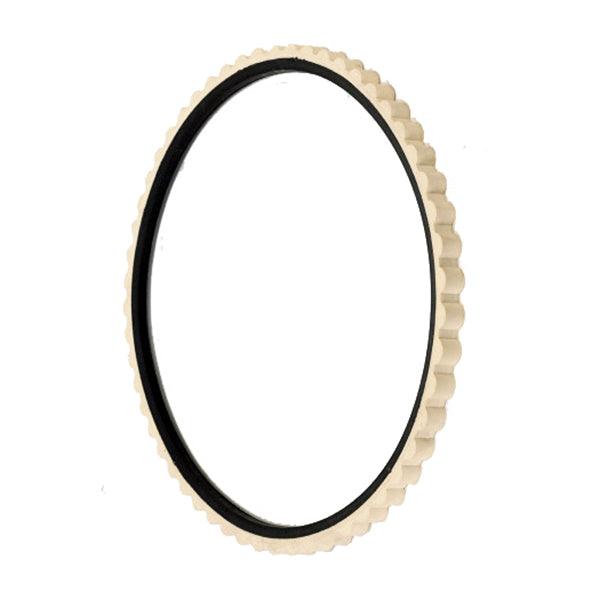

(3) synthetic rubber belts over (5) spring loaded rollers
Safe operation of equipment as your hands remain away from the cutterhead or sawblade
Stable feeding of workpieces due to the close coupling of the rollers and belts which span the rollers

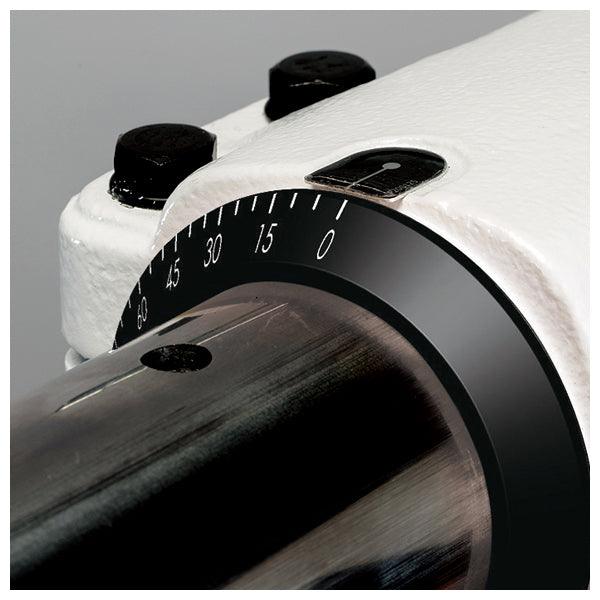

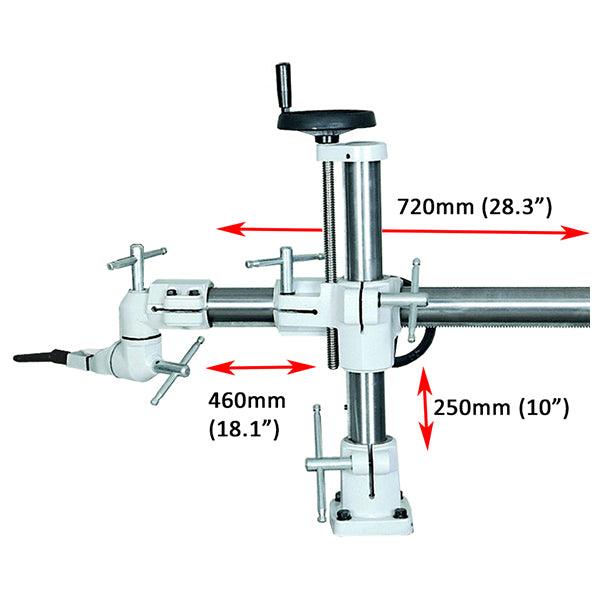

Universal stand allows for fast and convenient setting of the feeder unit

1 HP motor
4 feed speeds
Forward/reverse feed
Universal stand included
¾” roller suspension

Motor	1HP
Feed speeds	4 (13, 26, 33, 66 FPM)
Rotation	Forward & Reverse
Belts	44” x ½” x 3 pcs.
Roller suspension	0.79”

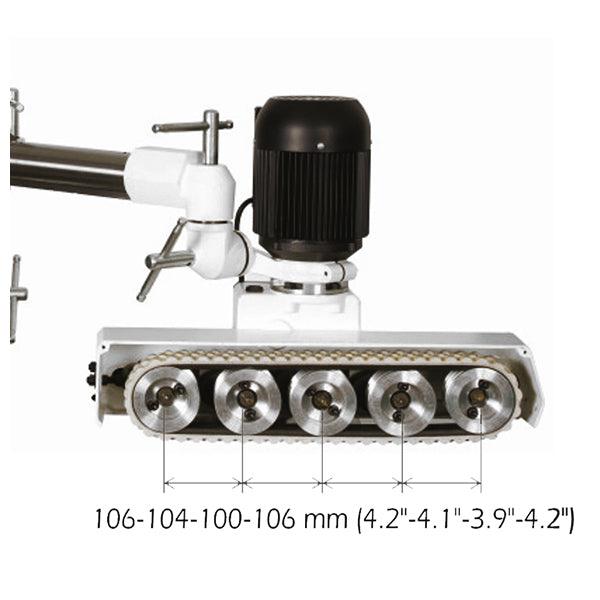

Distance between rollers	4.2”-4.1”-3.9”-4.2”
Shipping dimensions: Body	30.3″ x 22” x 11.5”
Shipping dimensions: Stand	30.3” x 12.6” x 11.5”
Shipping weight	154 lbs.
Electrics	230/1/60 = 8 amps 230/3/60 = 4.2 amps 460/3/60 = 2.1 amps
