Cantek WideBelt Sander 43" | C431

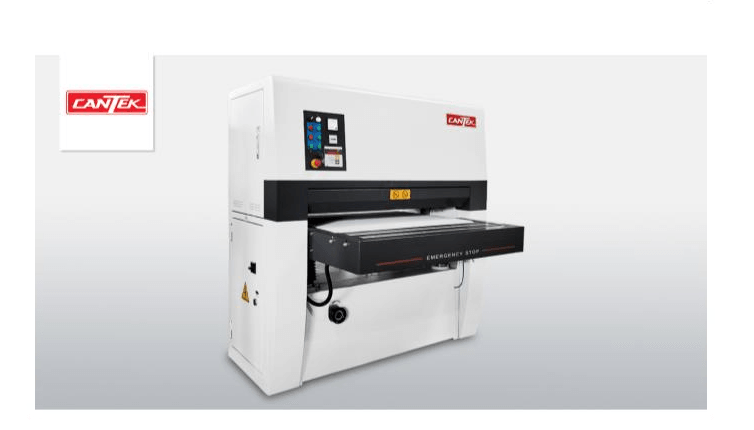

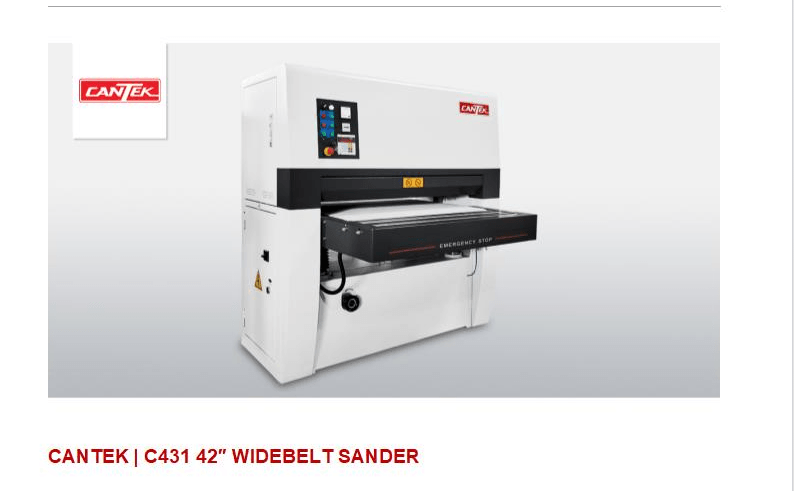

CANTEK | C431 43″ WIDE BELT SANDER

Dependable, consistent sanding results with a robust design that is built to last.

The Cantek C431 43” Single Phase Wide Belt Sander is a reliable tool for mid-size sanding tasks, ideal for woodworking professionals. Despite its compact size, it boasts powerful capabilities, suitable for sanding face frames, cabinet doors, and stair treads.

Featuring a combination sanding unit, the Cantek C431 Single Phase ensures precision and consistency from calibration to final sanding, enhancing project quality.

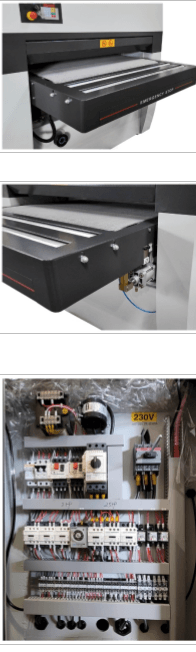

Built to withstand daily use, the Cantek C431 boasts a robust sanding unit and frame, instilling operator confidence. Motorized thickness adjustment with digital control adds convenience, facilitating swift and accurate table adjustments.

This sander offers unmatched performance and versatility for mid-size applications, standing ready to elevate woodworking projects to new levels of precision and excellence

DESCRIPTION INCH METRIC

Abrasive belt size 44” x 60” 1117 x 1524 mm

Main motor 10 HP

Feed motor 2HP

Table rise/fall motor ½ HP

Maximum width stock 43" 1092 mm

Minimum part length 16" 400 mm

Maximum thickness opening 5.9" 150 mm

Feed speed: variable 13 to 52 FPM 4 to 16 m/min

Infeed table 11 ½" 292 mm

Dust outlet 2 @ 4” 2 @ 100 mm

Compressed air usage 2 CFM @ 90 PSI 2 CFM @ 90 PSI

Net weight 3344 lbs 1520 kgs

Machine dimensions 70” x 72” x 71” 1780 x 1820 x 1810mm

Shipping weight 5390 lbs 2444 kgs

Shipping dimensions 73” x 77” x 82” 1854 x 1950 x 2080mm

Machine electrical requirements 230/1/60 = 62 amps
