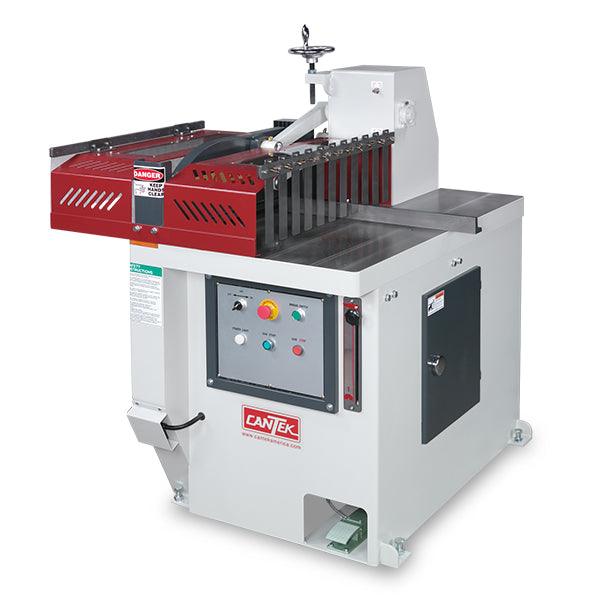

Cantek Pneumatic Cut-Off Saw | PCS24
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Large capacity crosscutting solution.

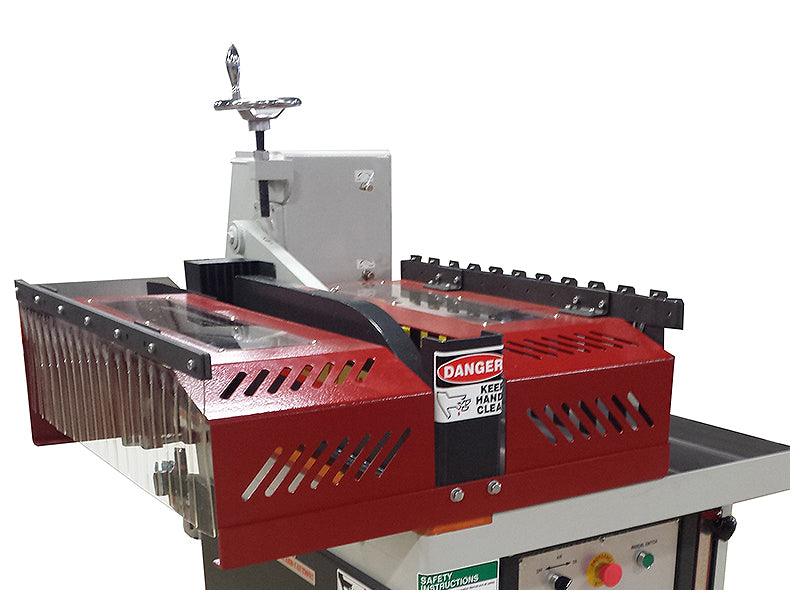

The Cantek PCS24 24” pneumatic cut-off saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 15HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.
Why Cantek PCS24 24″ Pneumatic Cut-Off Saw?
- Large cutting capacity from 2”x21” up to 7”x 8”
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
- Available in Right Hand & Left Hand configuration
- Cut off capacity (thickness x width): 2″ x 21″, 4″ x 19″, 6″ x 15″, 7″ x 8″
- Powerful 15HP main motor
- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
- Fast cutting cycle with up to 40 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy.
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
Cutting capacity (thickness x width) |
2″x21″, 4″x19″, 6″x15″, 7″x8″ |
Cycle speed |
40 strokes/min |
Cycle operation |
Air / mechanical |
Saw blade size |
24″ max. (20″ min.) |
Saw arbor diameter |
1″ |
Saw blade speed |
2400 RPM |
Dust exhaust diameter |
Ø4″ x 2 |
Air consumption |
27.5 CFM |
Motor |
15 HP |
Table size |
45.3″ x 26″ |
Net weight |
1058 lbs |
Gross weight |
1433 lbs |
Machine dimensions (LxWxH) |
40.2″ x 45″ x 55″ |
Packing dimensions (L x W x H) |
53.5″ x 35.5″ x 57″ |
