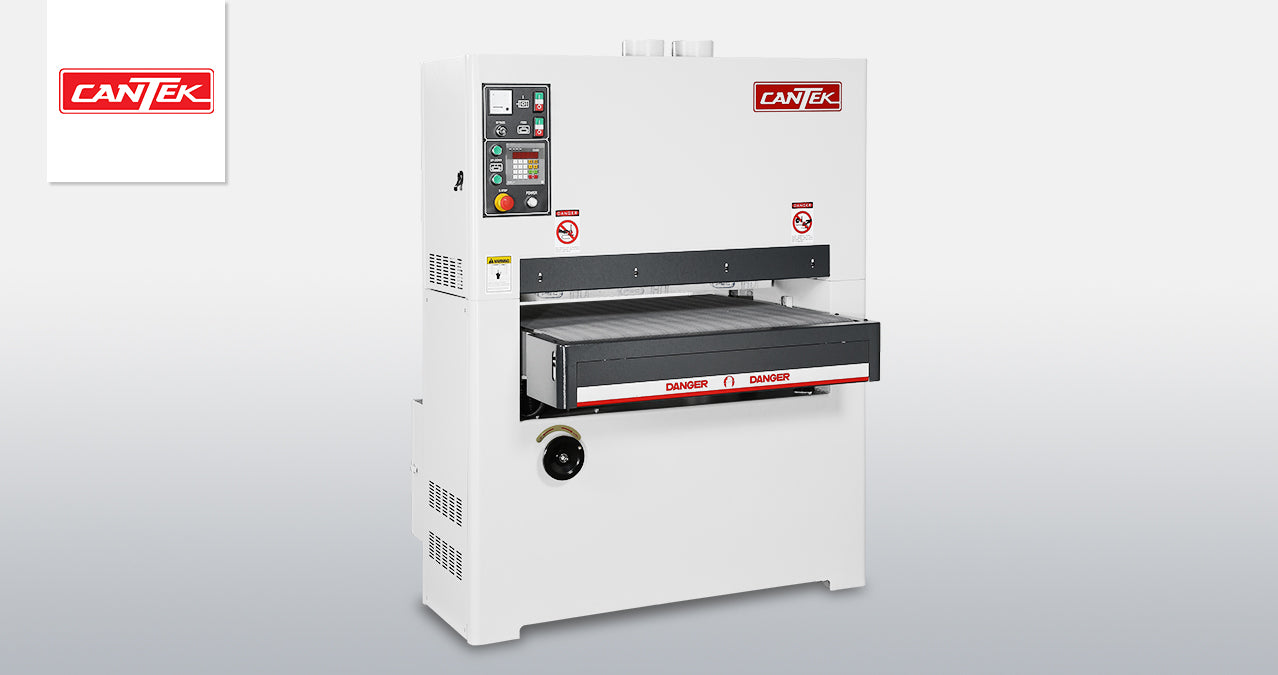

Why Cantek S371 36″ Widebelt Sander?
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position.

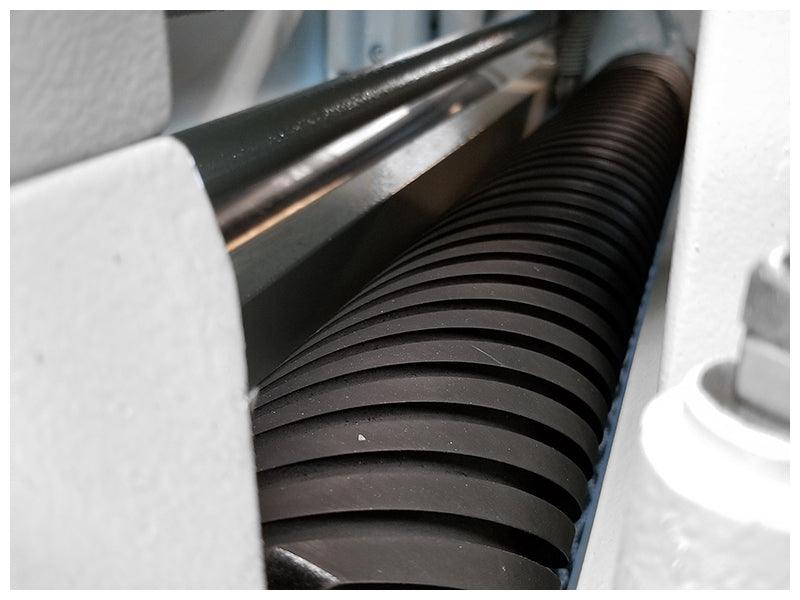

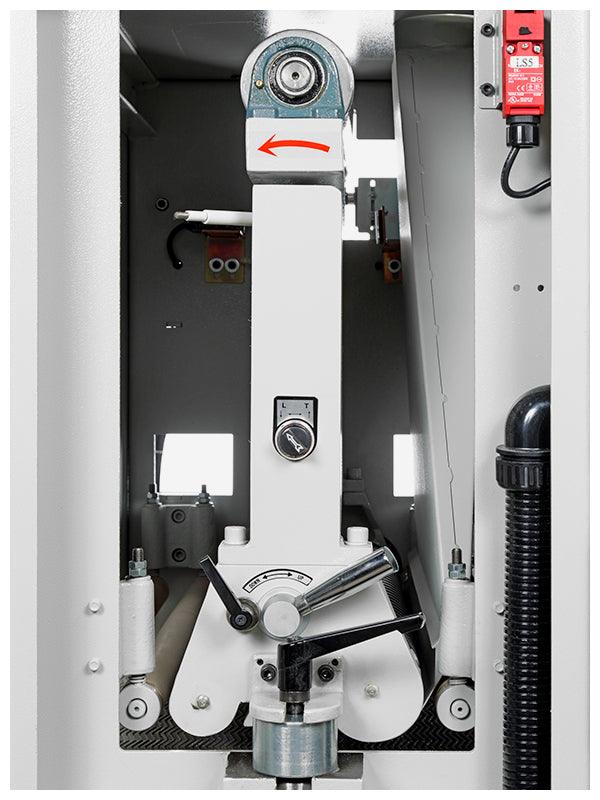

- Combination sanding unit with 5″ rubber contact drum and 2″ wide adjustable sanding platen for a wide range of sanding applications.
- Small footprint.
KEY ADVANTAGES
SPECIFICATIONS
INCH |
METRIC |
|
Abrasive belt size |
37” x 60” |
939 X 1524 mm |
Main motor |
15 HP (3 PH)
|
|
Feed motor |
1HP |
|
Table rise/fall motor |
0.25 HP |
|
Working width |
37″ |
930 mm |
Minimum part length |
12.5″ |
320 mm |
Maximum thickness opening |
5.9″ |
150 mm |
Feed speed: variable |
15 to 49 FPM |
4 to 15 m/min |
Pass line height |
37″ |
950 mm |
Dust outlet |
3 @ 4” |
3 @ 101 mm |
Compressed air pressure |
PSI 60 |
4 Kg/cm2 |
Compressed air volume |
7 CFM |
0.2M3/Min |
Dust collection requirements |
1236 CFM |
2100 M3/HR |
Net weight |
1609 lbs |
730 kgs |
Machine dimensions |
50” X 52” X 66” |
1270 x 1335 x 1680 mm |
Shipping weight |
1829lbs |
830 kgs |
Shipping dimensions |
52” X 57” X 76” |
1330 x 1460 x 1940 mm |
Electrical requirements |
230/3/60 = 47 amps |
|
