Freud Solid Wood Surfacing & Rabbeting Bit
$115.90
Skip to product information
Technical Specifications
Freud Solid Wood Surfacing & Rabbeting Bit
$115.90
Details
Product Overview

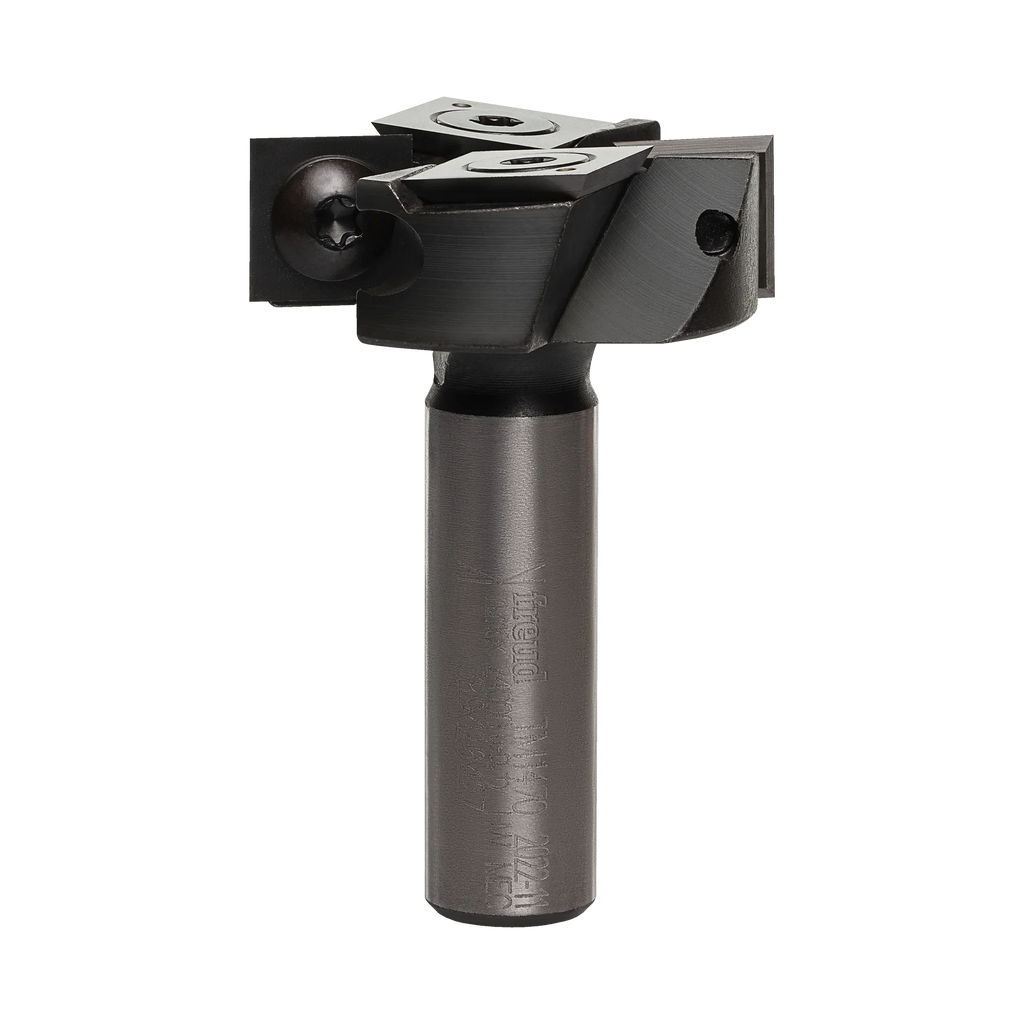

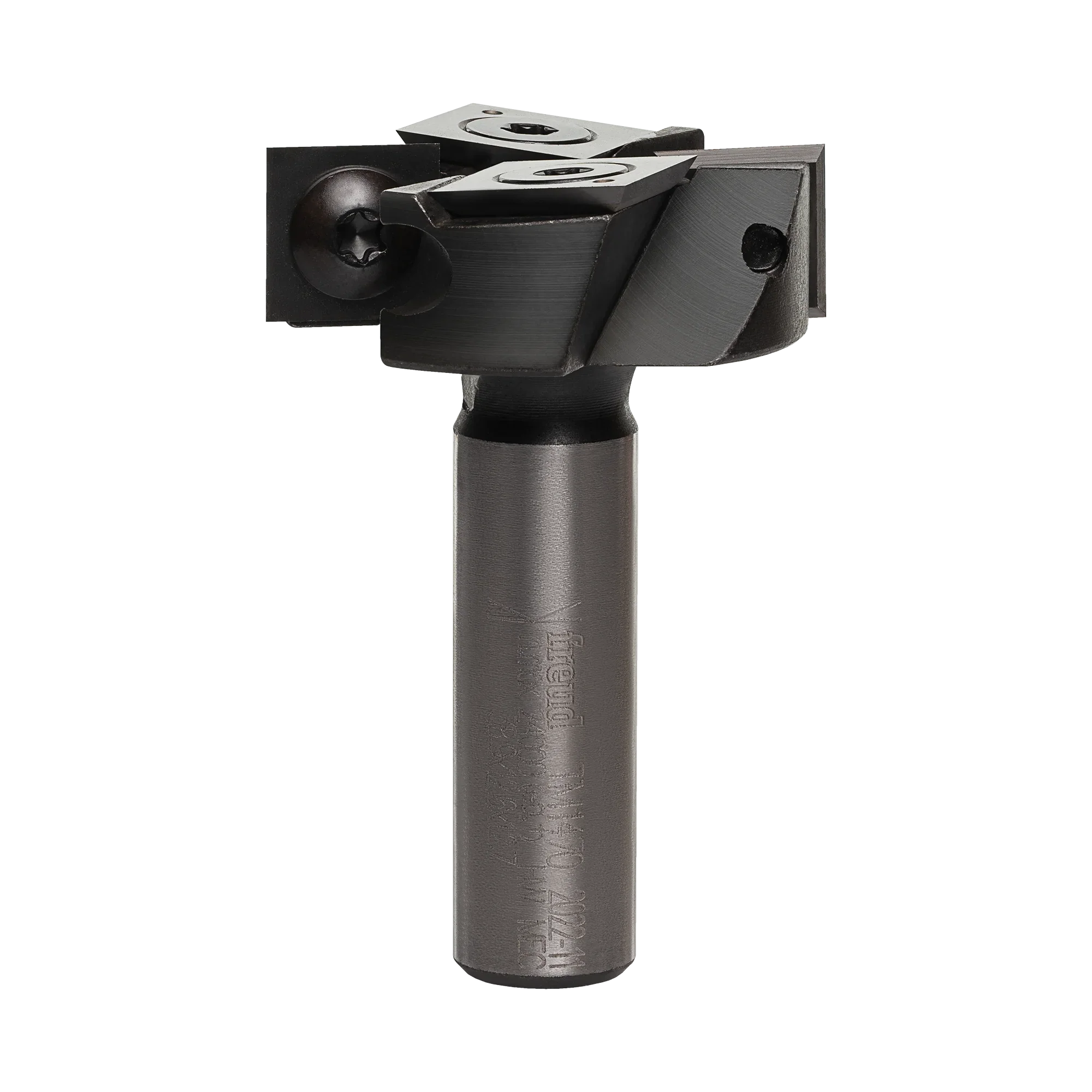

Freud's Solid Wood Surfacing & Rabbeting Bit is the ideal CNC tool for routing a fine, flat surface on solid hardwood or softwood, or for routing precise rabbets along the edge of solid wood panels. The replaceable solid carbide inserts can be rotated so all 4 edges are used, providing extremely long life, even in abrasive materials. Cutting diameter: 1-1/2", 1/2" shank.
- Specifically designed for CNC machines to deliver long cutting life, maximum durability, and high-quality finish
- Enhanced TiCo™ Super Density Carbide with chromium, designed and manufactured by Freud for 2x cutting life
- Advanced cutting geometry for superior chip evacuation and finish quality

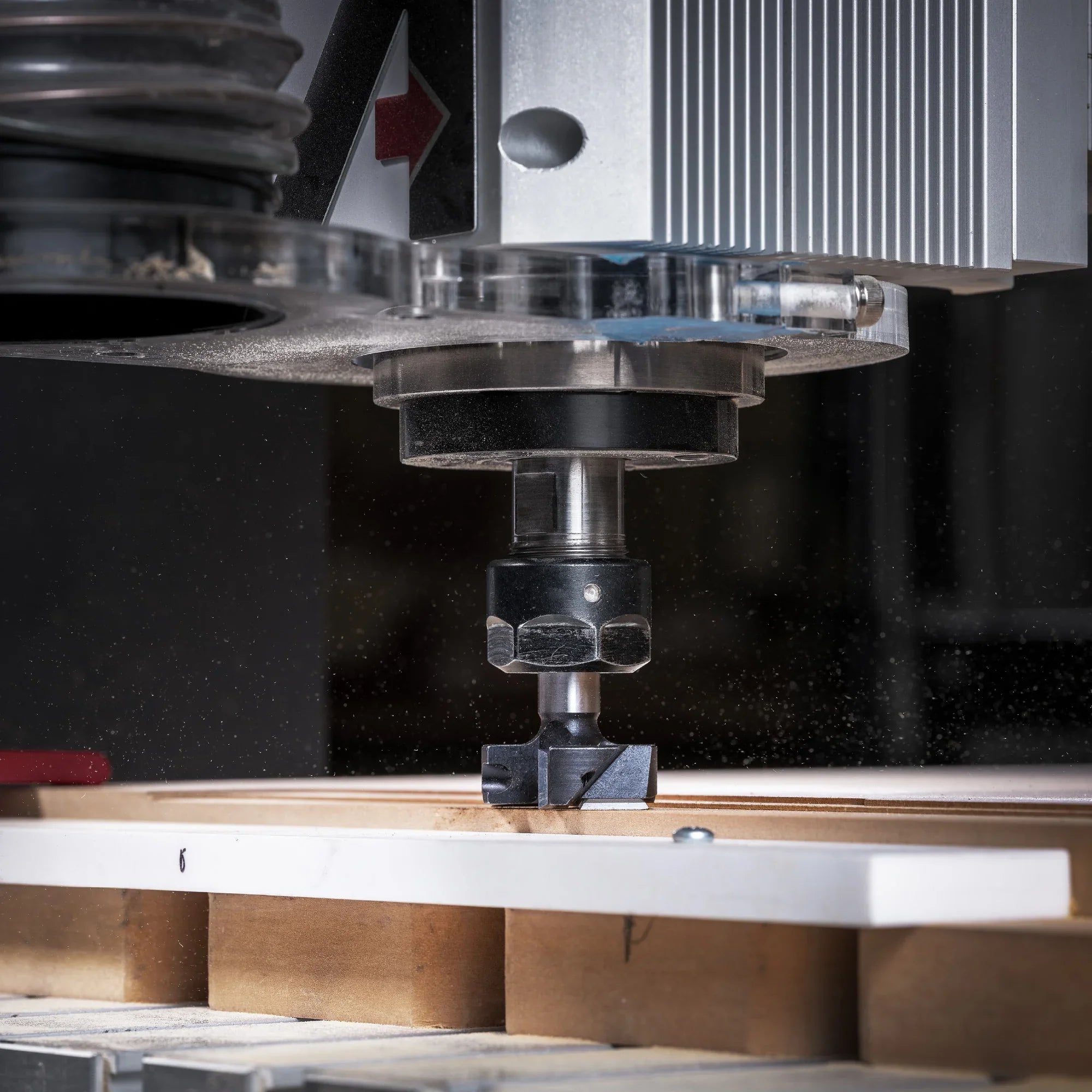

Ideal For: CNC use for surfacing solid wood and rabbeting edges.
| Number of Cutters | 4 |
| Max RPM | 16000 |

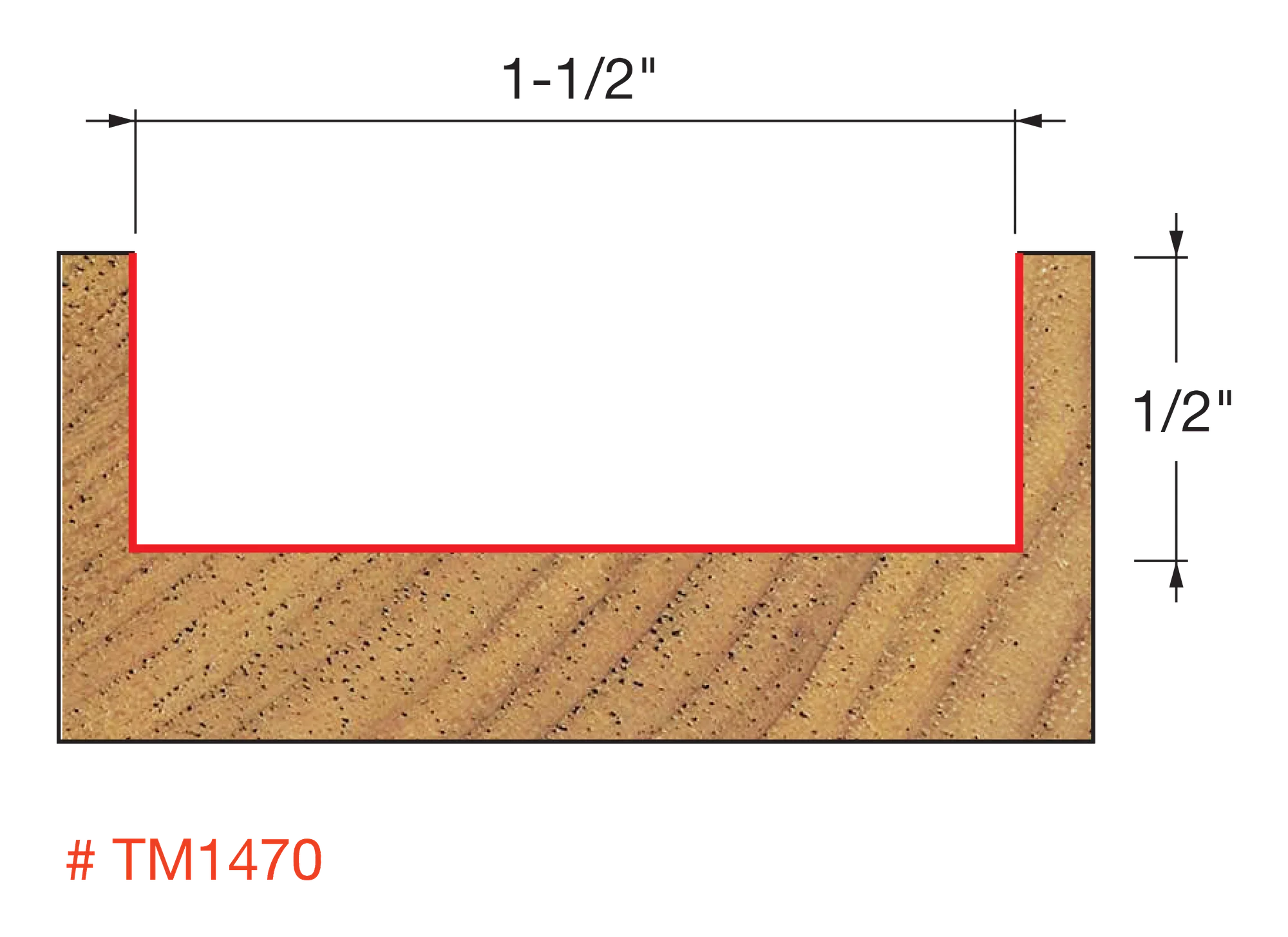

| Carbide Height (h) | 1/2" |
| Overall Dia. (D) | 1-1/2" |
| Overall Length (H) | 2-1/4" |
| Shank Dia. (A) | 1/2" |
Replacement Parts
|
#TM1465-RPLKS -4pc Replacement Insert Knife Set
|
|
|
#VT05MAA9 -1pc Countersink Screw
|
|
|
#VT71MAA9 -1pc Insert Locking Screw
|
