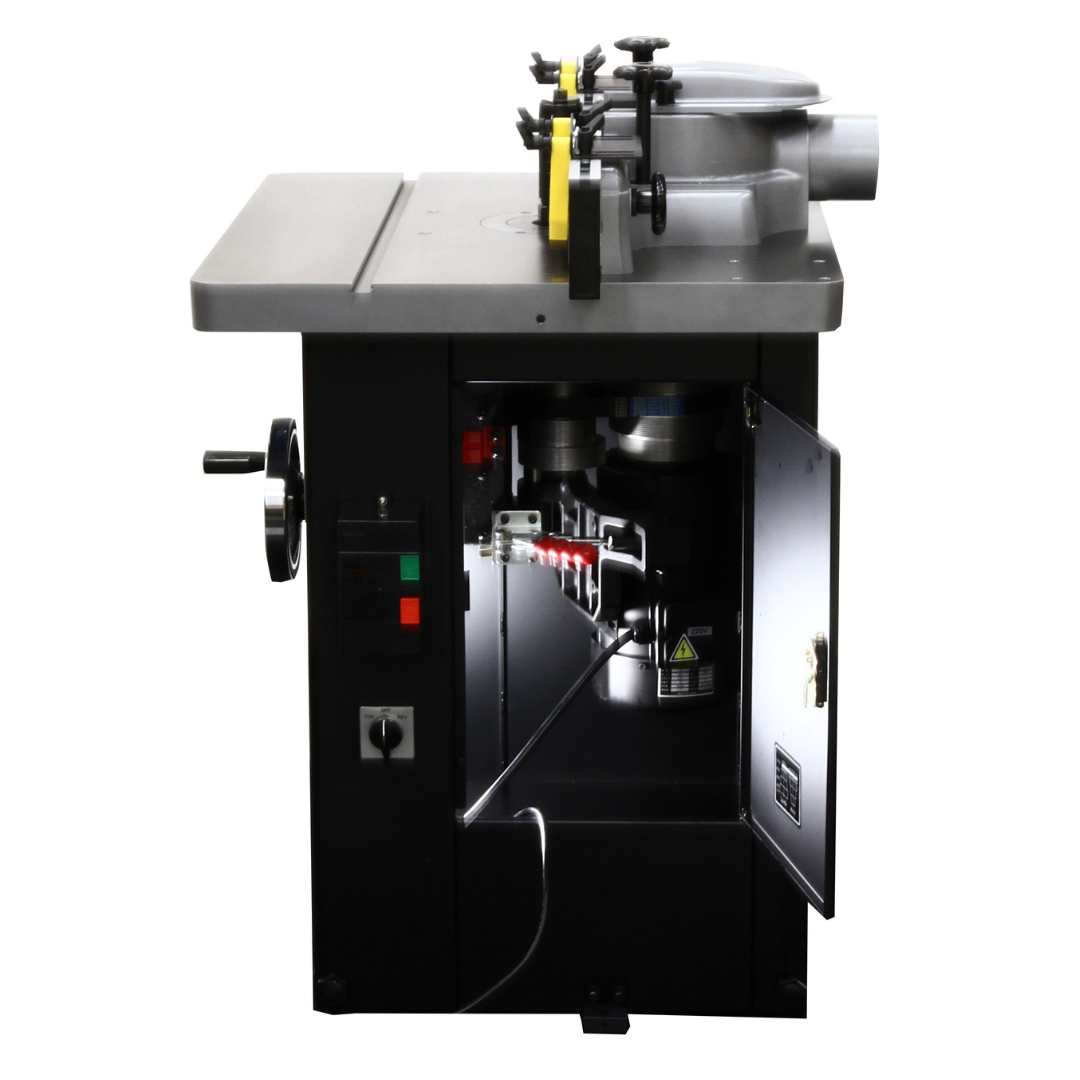

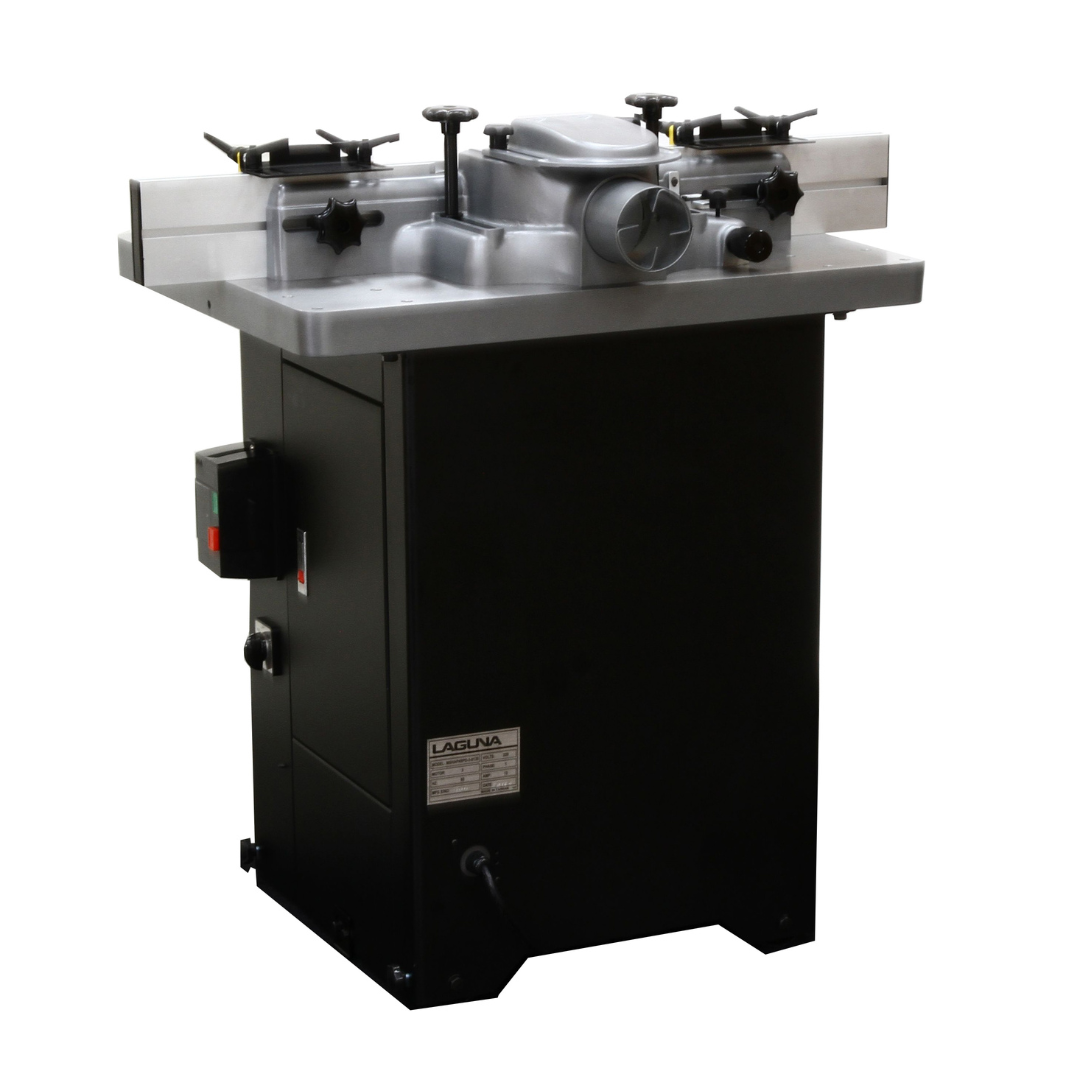

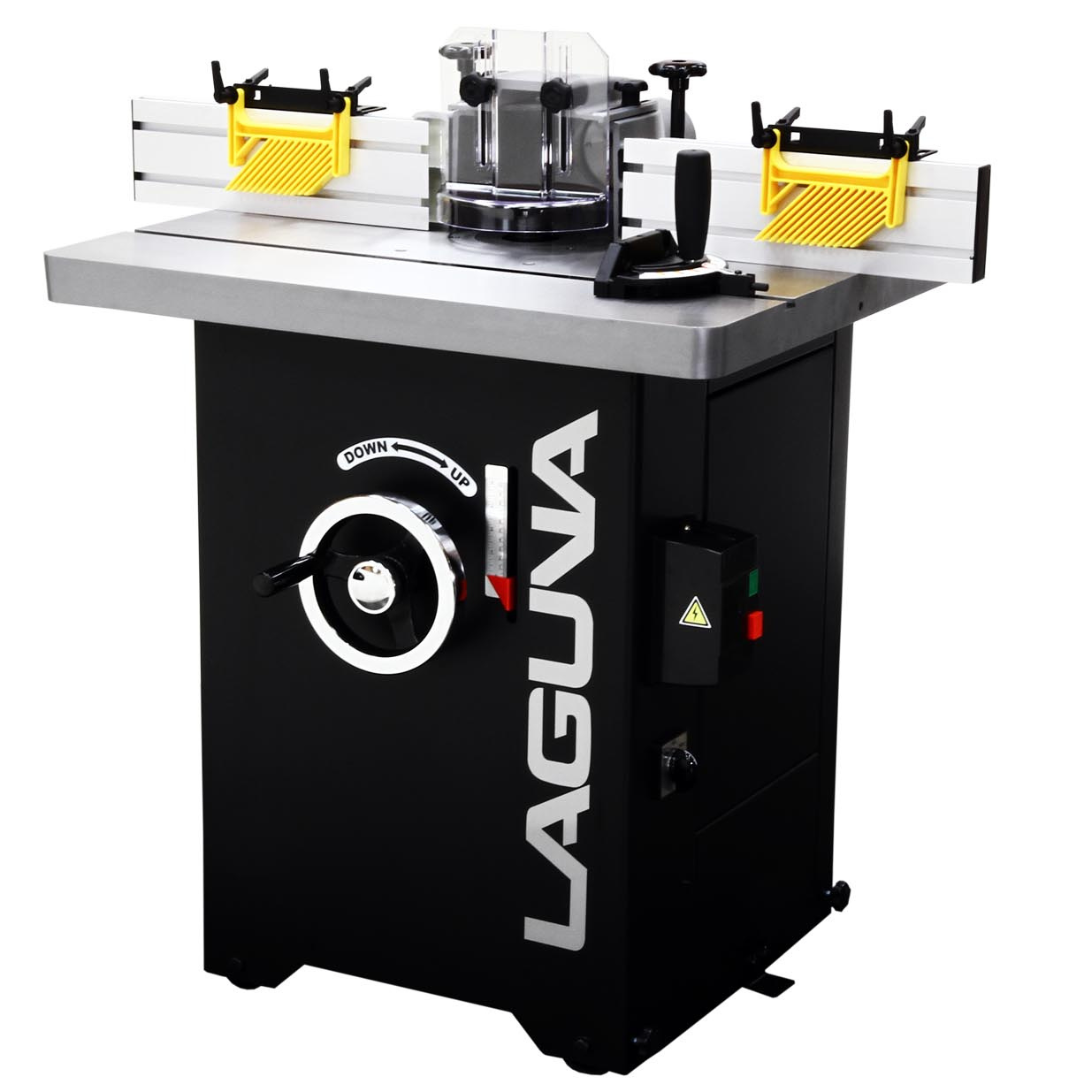

Laguna Compact Shaper – 4 Speed, 3HP, 1 Phase

Model: MSHAP4SPD-3-0130

Precision. Power. Versatility.

The Laguna Compact Shaper is already regarded as best in class. With an impressive precision fence, wide-range RPM, and generous table size, this shaper is a versatile investment for any professional woodworker. The fit and finish on this machine reflect Laguna’s commitment to quality and performance.

Smooth Performance

• Flat poly-groove belt transfers more power with less vibration, delivering consistent, smooth operation.

• Easy spindle lock makes tool changes fast and effortless.

• 4-speed spindle allows fine control for a variety of shaping tasks.

Consistent Power & Versatility

• 3HP motor ensures plenty of torque for heavy-duty shaping.

• Forward/Reverse rotation expands functionality.

• Compatible with multiple spindle sizes and router collets for maximum flexibility.

Thoughtful Design

• Built-in wheels for easy movement.

• Micro-adjustable fence for precise cuts.

• Large table and T-slots accommodate a wide variety of projects.

Key Specifications

✅ Motor: 3HP, 1 Phase, 220V, 60Hz
✅ Spindle Travel: 4”
✅ Spindle Sizes: 3/4” & 1-1/4” (Included)
✅ Router Collets: 1/4” & 1/2” (Included)
✅ Spindle Speeds: 4000, 6000, 8000, 10000 RPM
✅ Forward/Reverse: Yes
✅ Table Size: 32” x 26.5”
✅ Table Opening Diameter: 6.25”
✅ Table Insert Openings: 2.5”, 4.3125”
✅ Fence Size: 4.8125” x 16”
✅ Drive Belt: Flat Poly-Groove
✅ Table Height from Floor: 34”
✅ Dust Port Diameter: 4”
✅ Built-In Wheel System

Dimensions & Weight

Weight: 450 lbs (Net) / 500 lbs (Shipping)
Shipping Dimensions: 40” x 30” x 42”

Why Choose the Laguna Compact Shaper?
The Compact Shaper offers precision, power, and ease of use in a surprisingly compact footprint. From its smooth flat poly-groove belt drive to its versatile 4-speed spindle and precision fence, this shaper provides professional-grade results at an excellent value for any woodworking shop.
