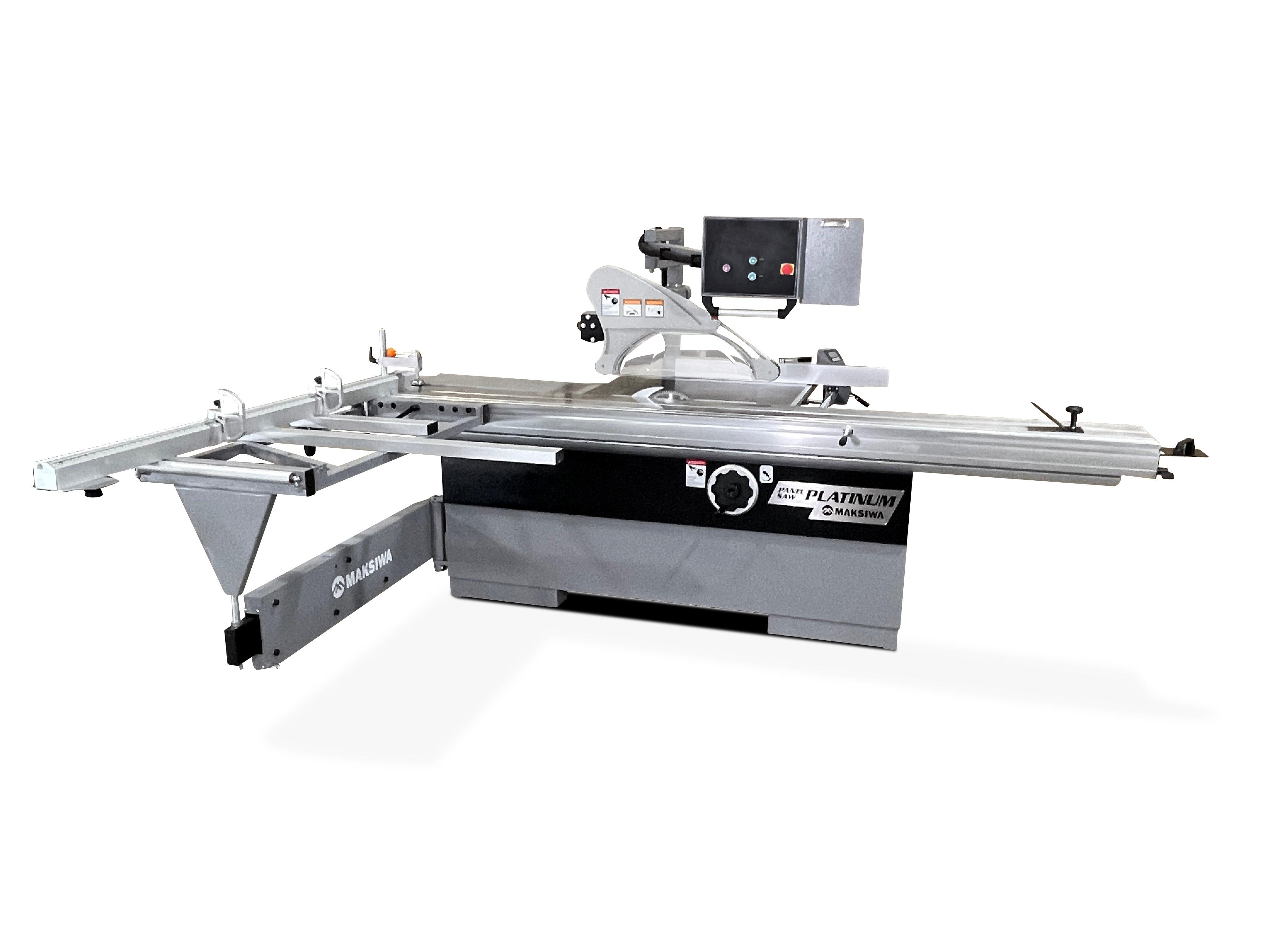

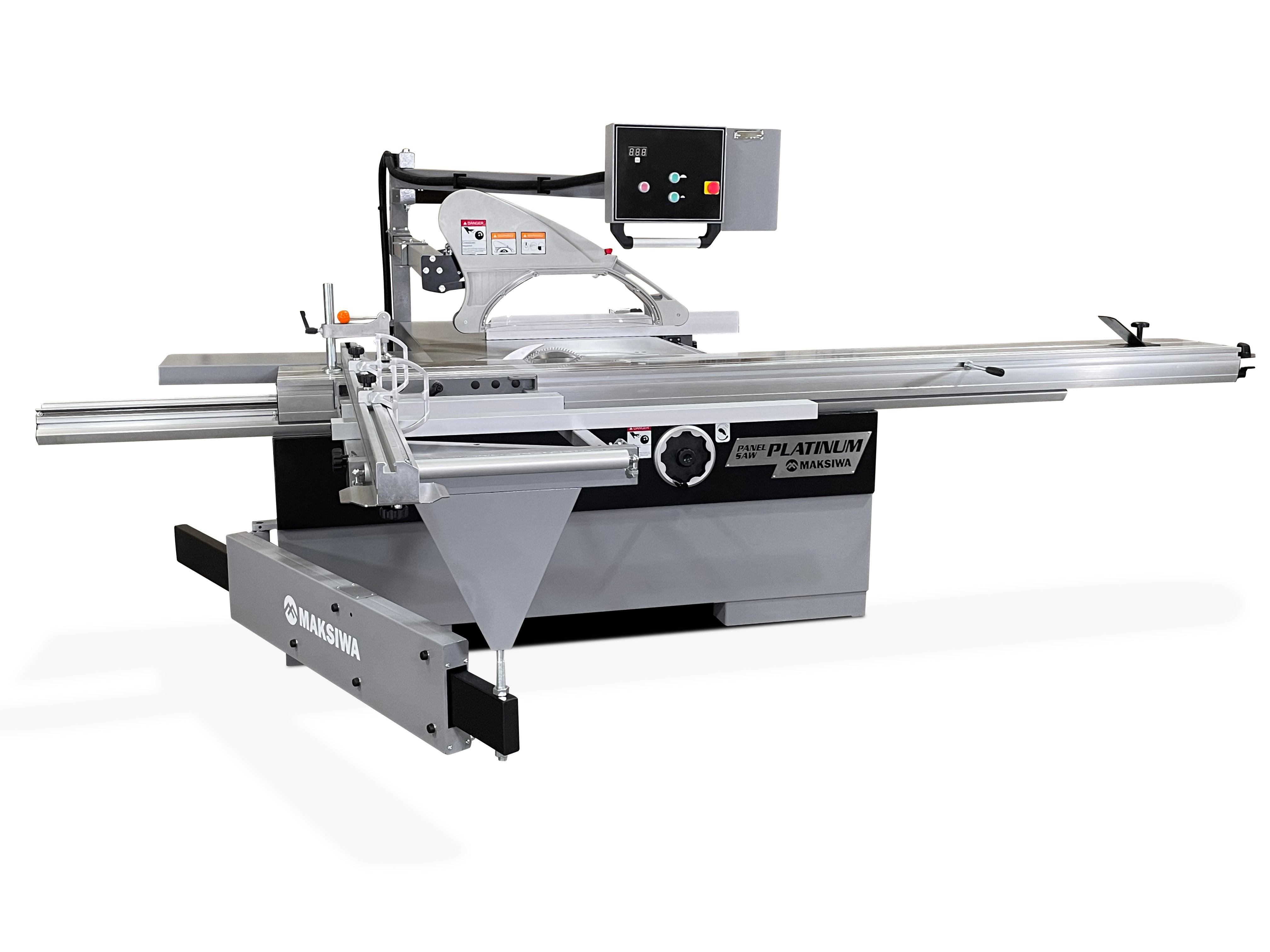

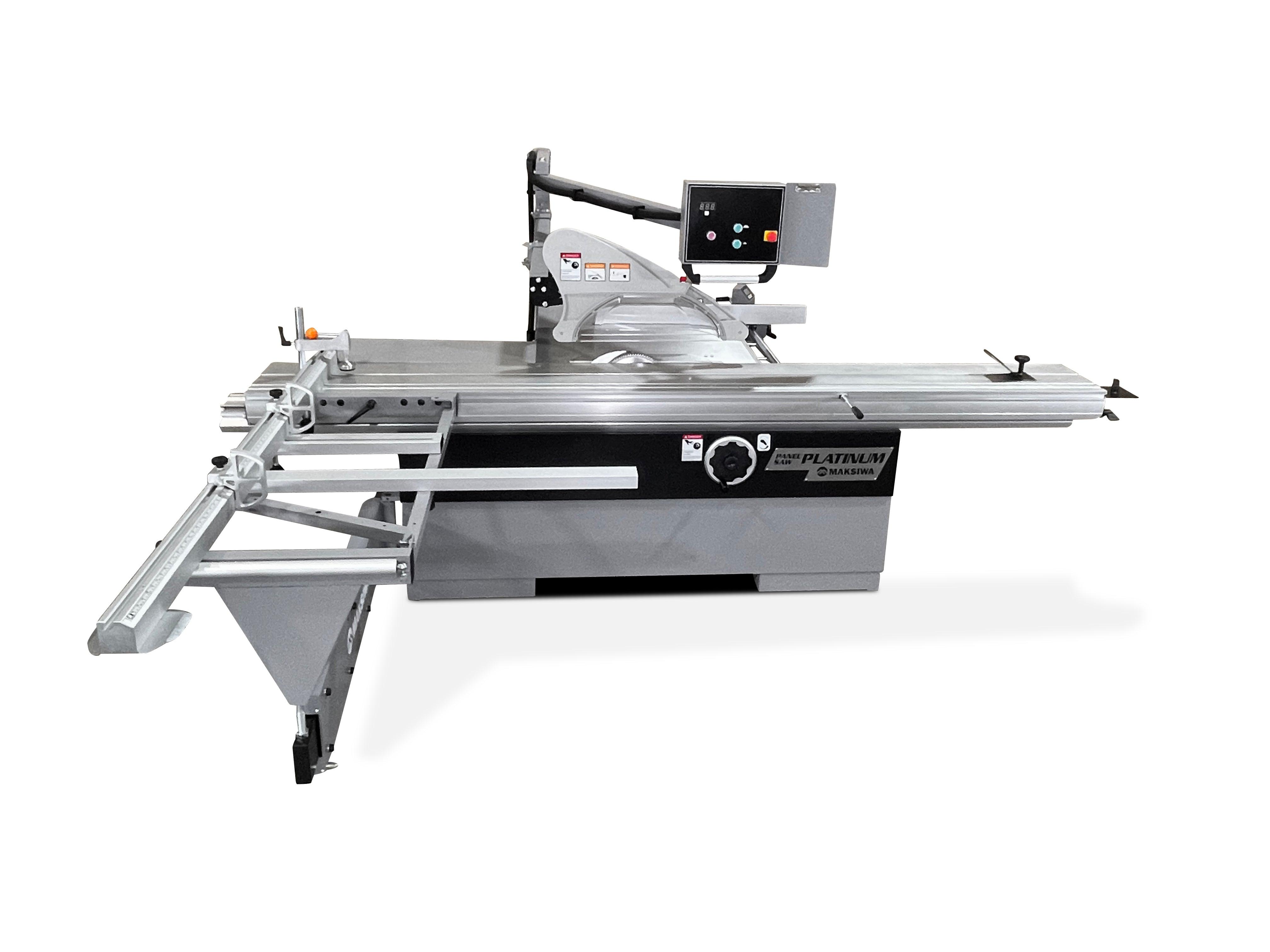

Maksiwa BMP.3200.IR Platinum
Sliding Panel Saw 126"
Model: BMP.3200.IR Platinum
Product Overview

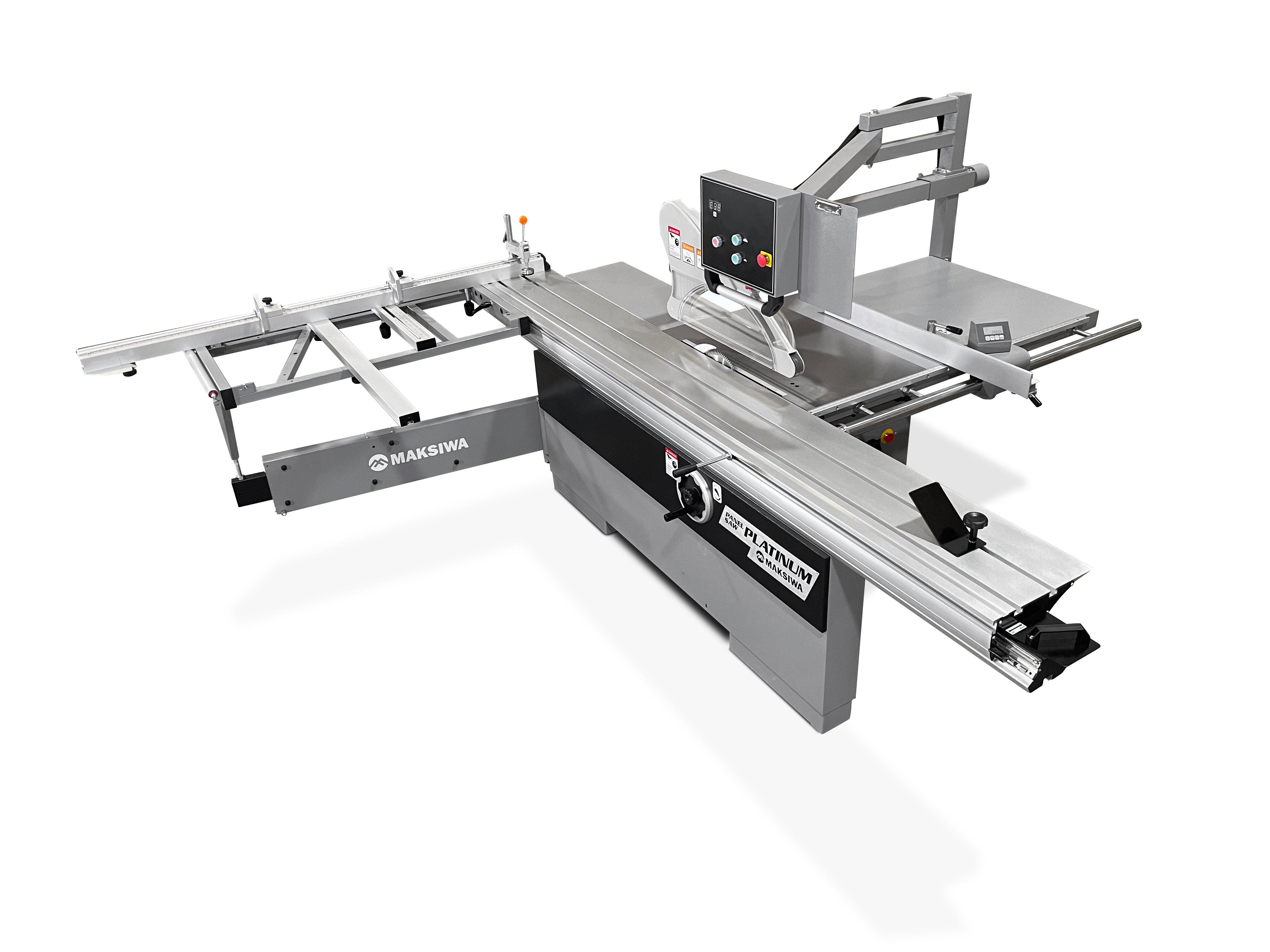

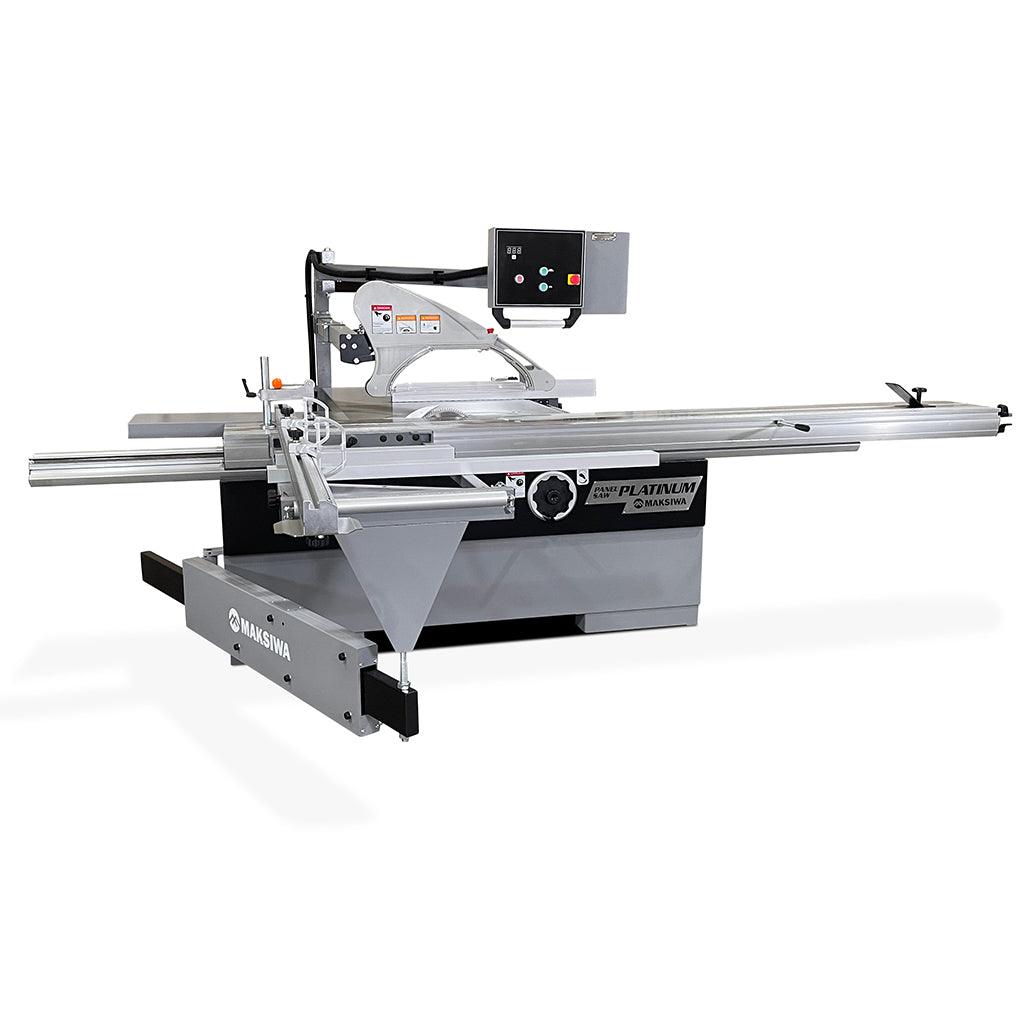

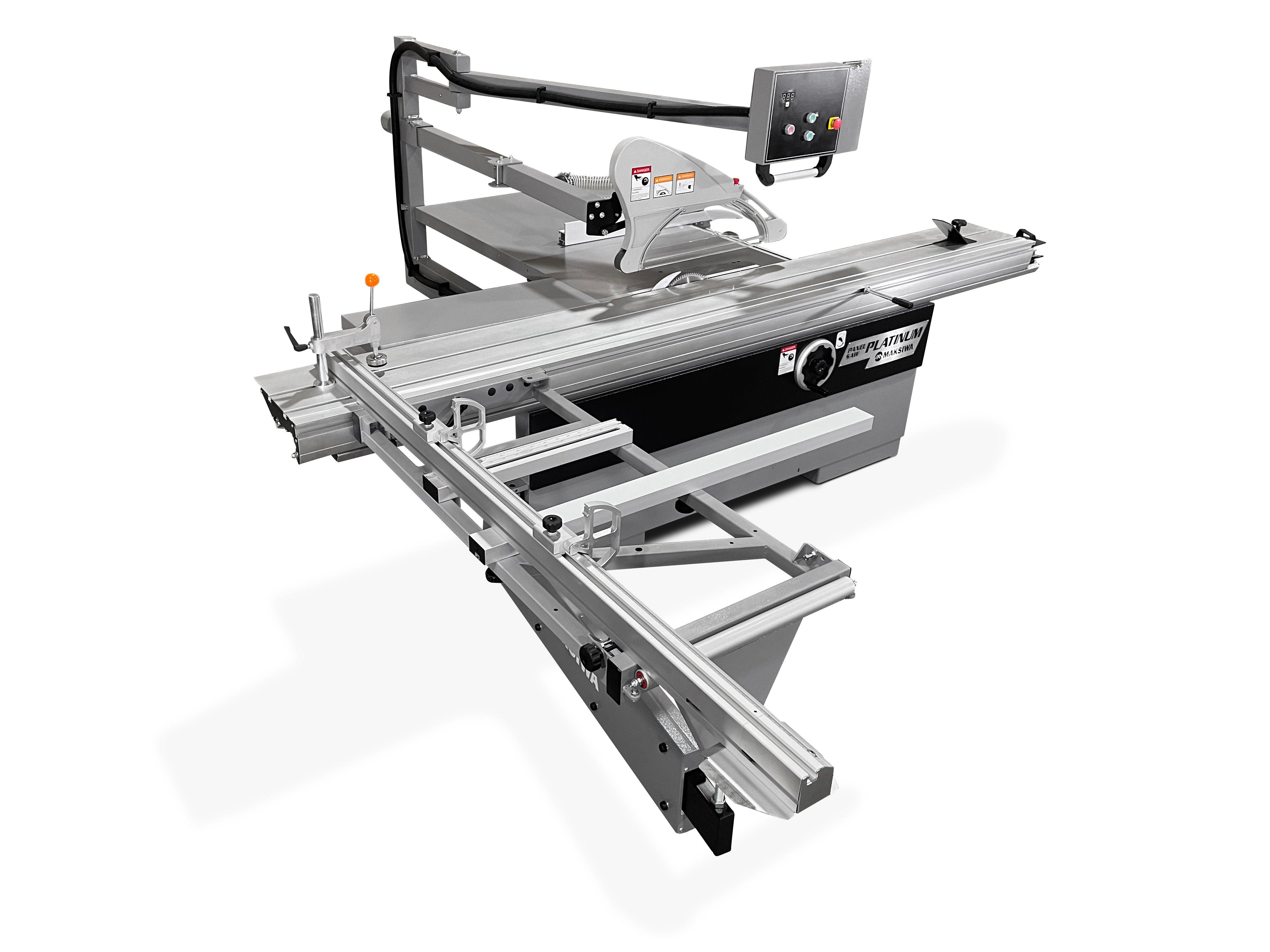

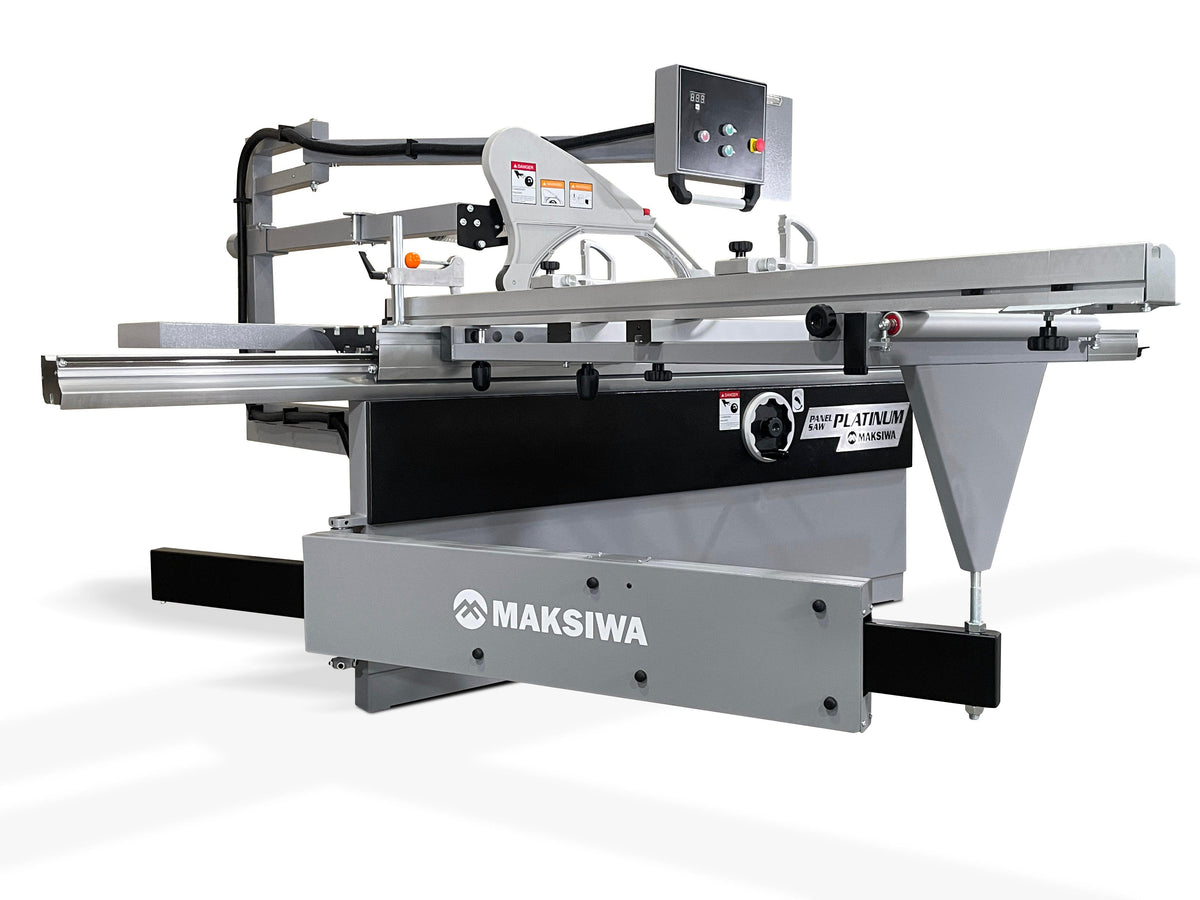

The BMP.3200.IR Platinum is the most powerful sliding panel saw in the Maksiwa lineup. It is equipped with a 7.5 HP main motor and a ¾ HP scoring motor (3 Phase), delivering exceptional power and precision for demanding woodworking applications.

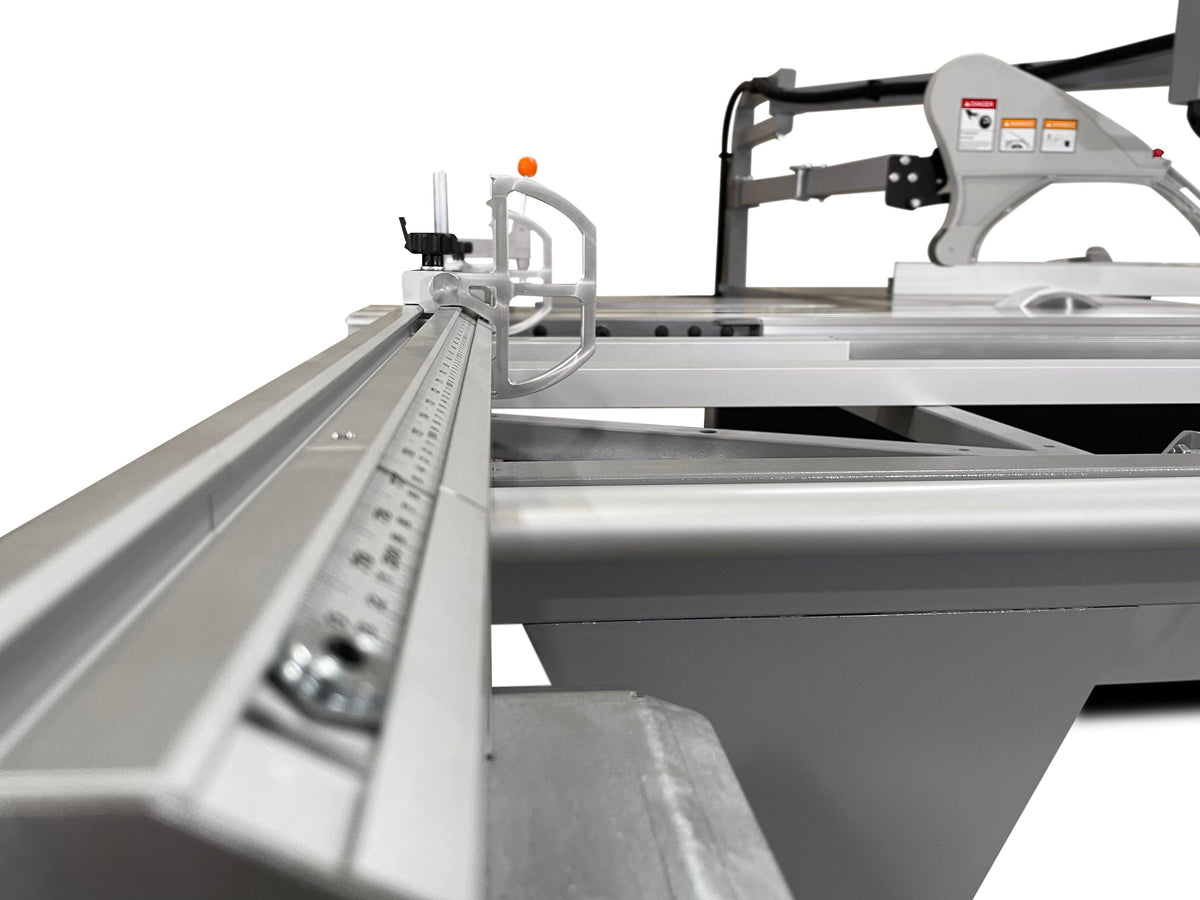

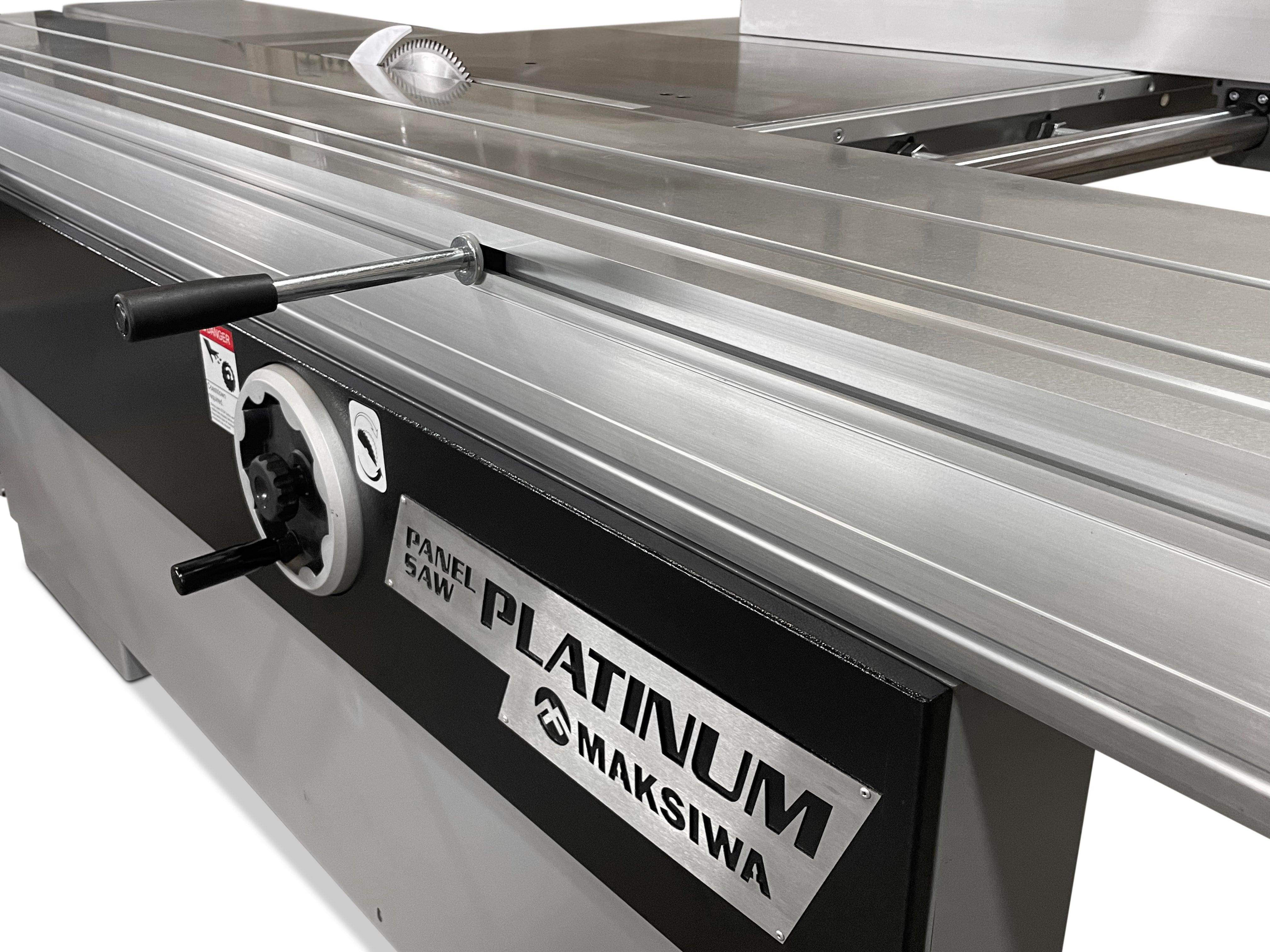

The 126” sliding table is constructed from anodized aluminum and runs on precision linear guide rails, providing ultra-smooth, effortless movement. This design allows for precise material handling and enhanced operator control.

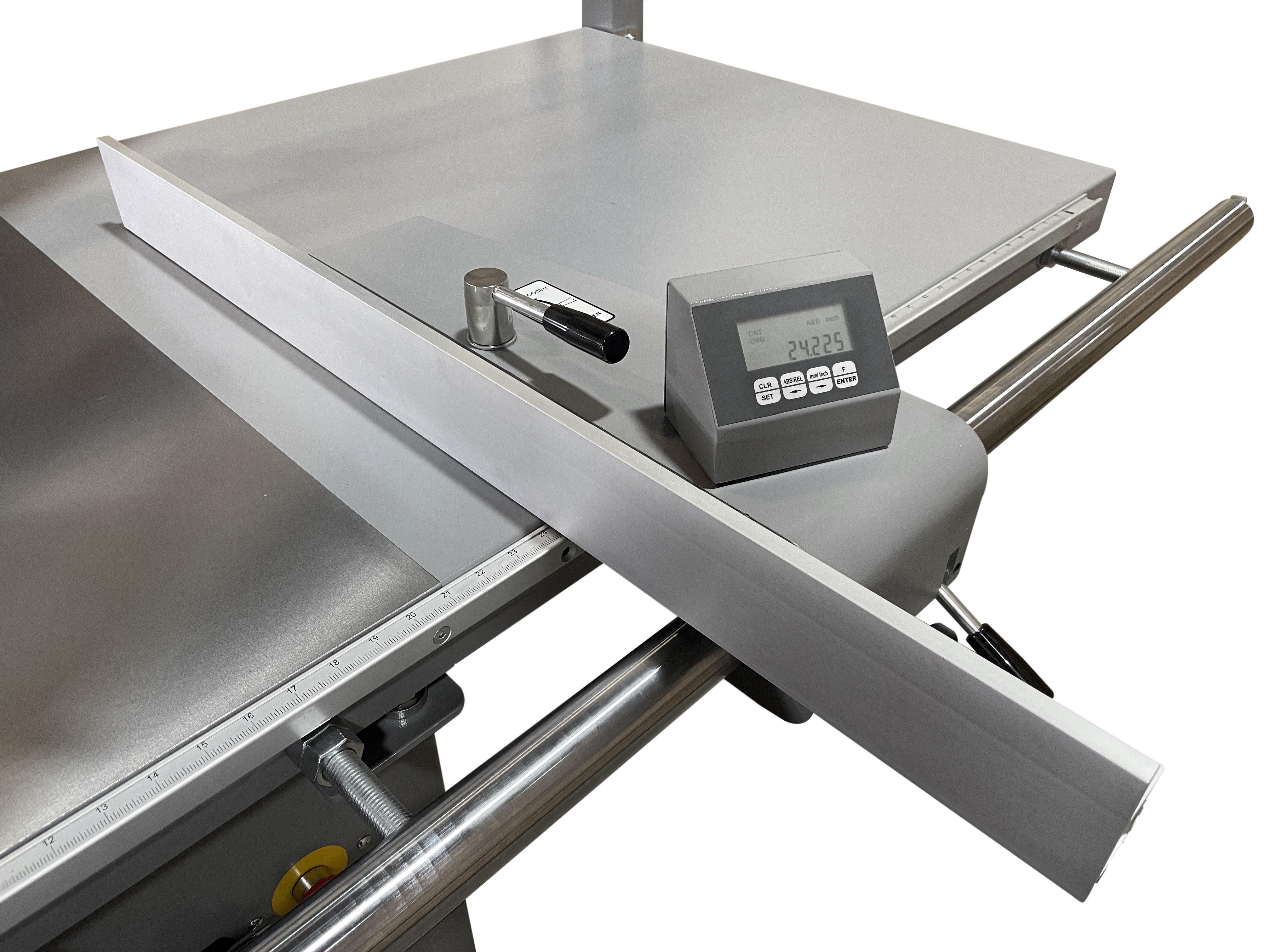

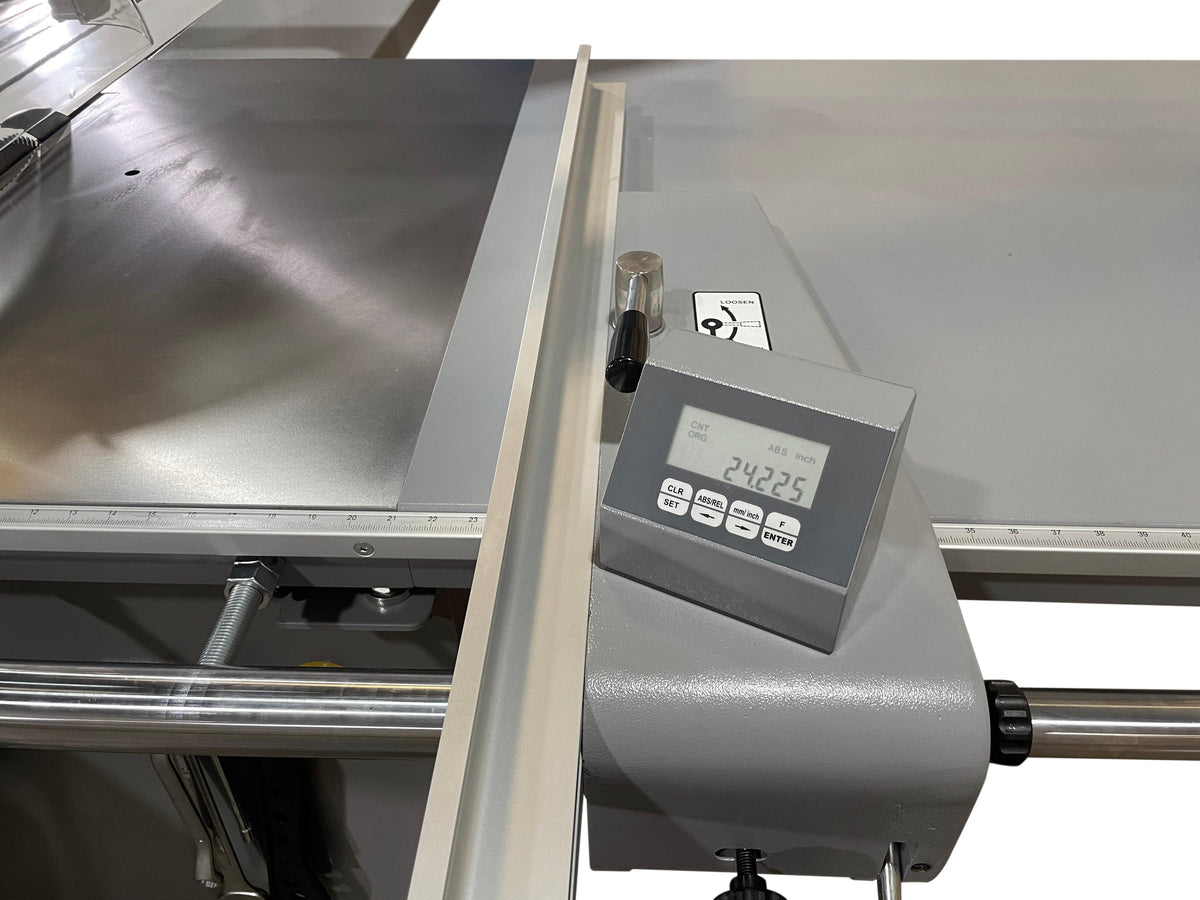

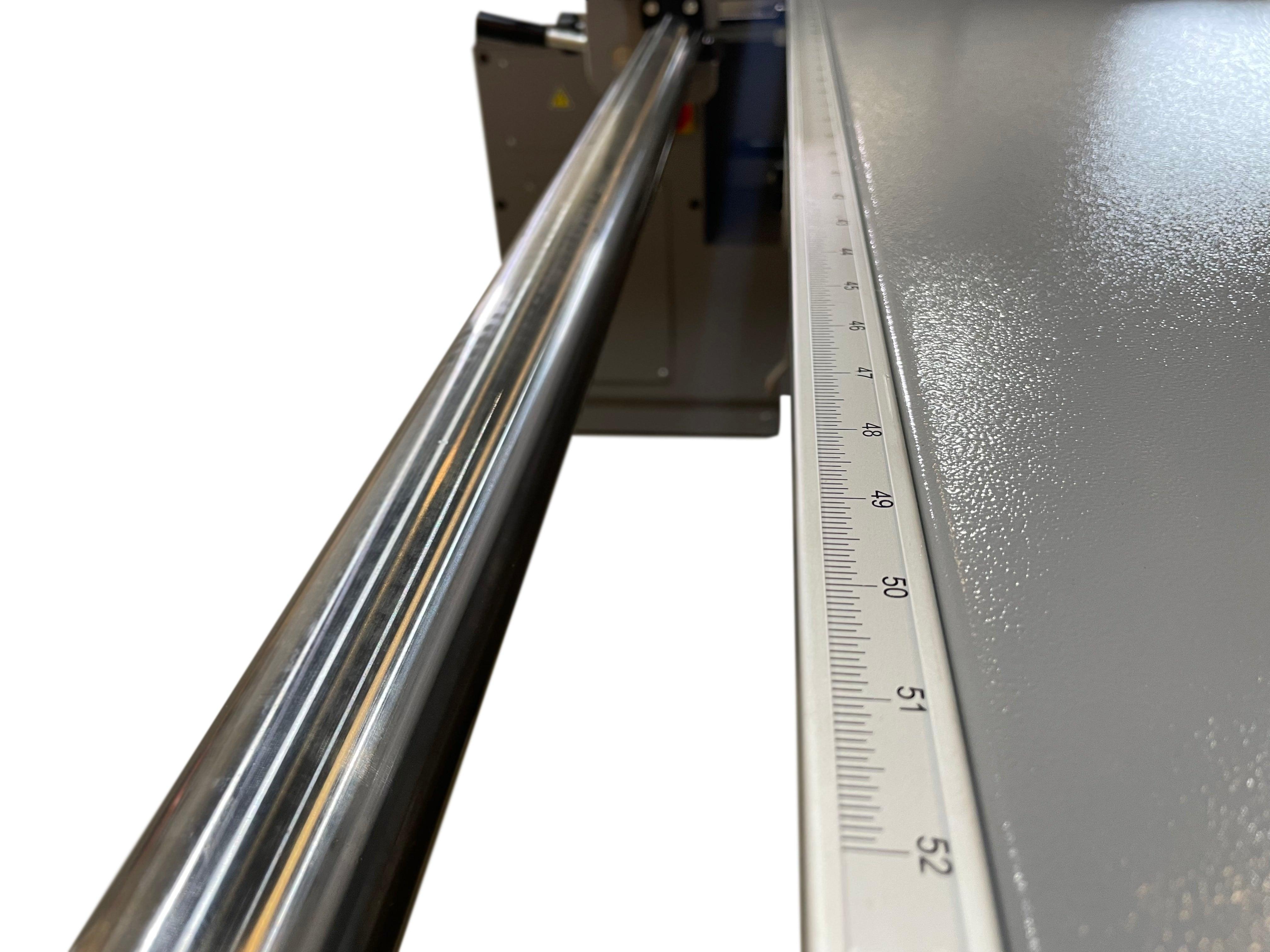

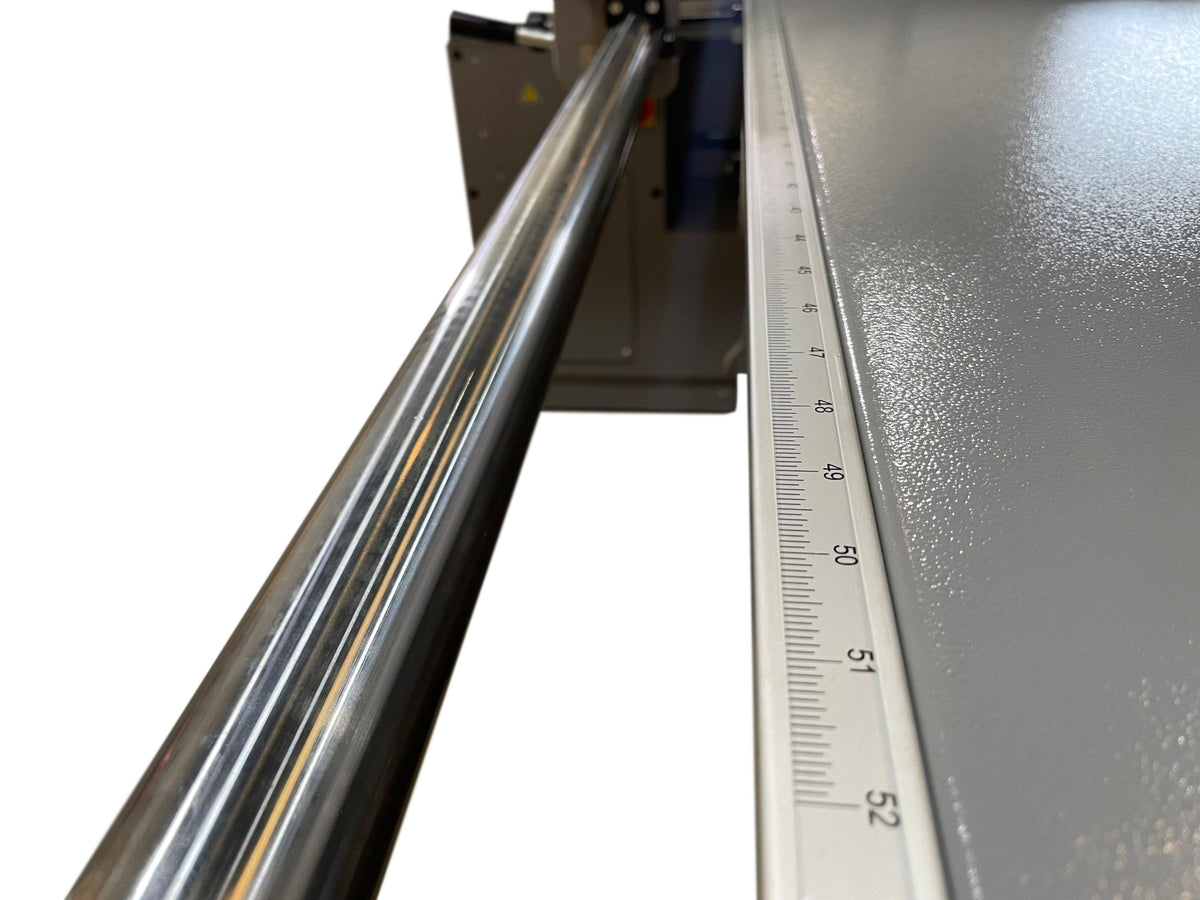

Designed with a European-style 51″ rip fence, the machine features a digital readout with micro-adjustment for fine-tuning. The fence locks securely in place and adjusts incrementally for maximum accuracy. It consists of a heavy-duty casting riding on a micro-polished solid steel bar for stability and durability.

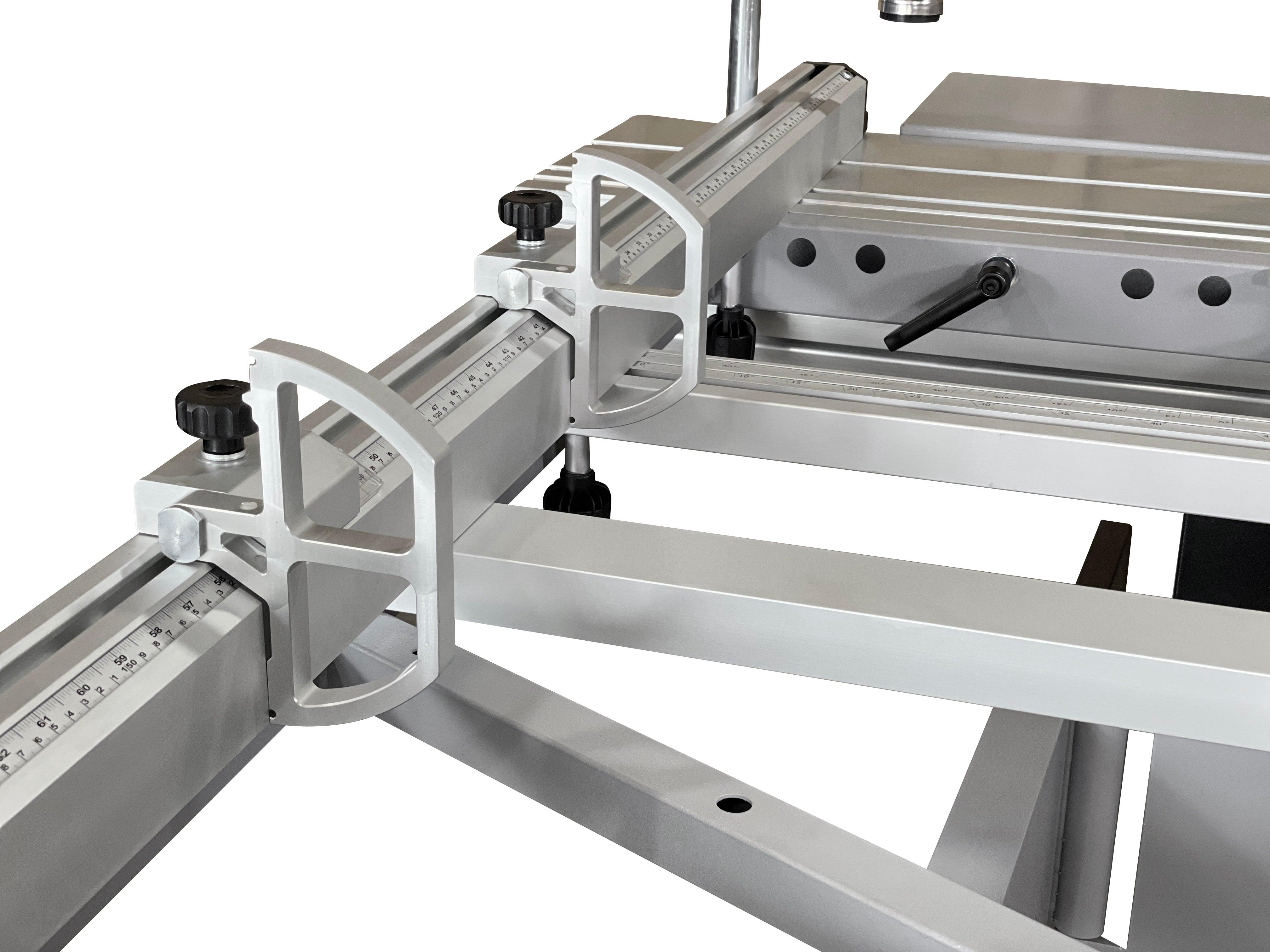

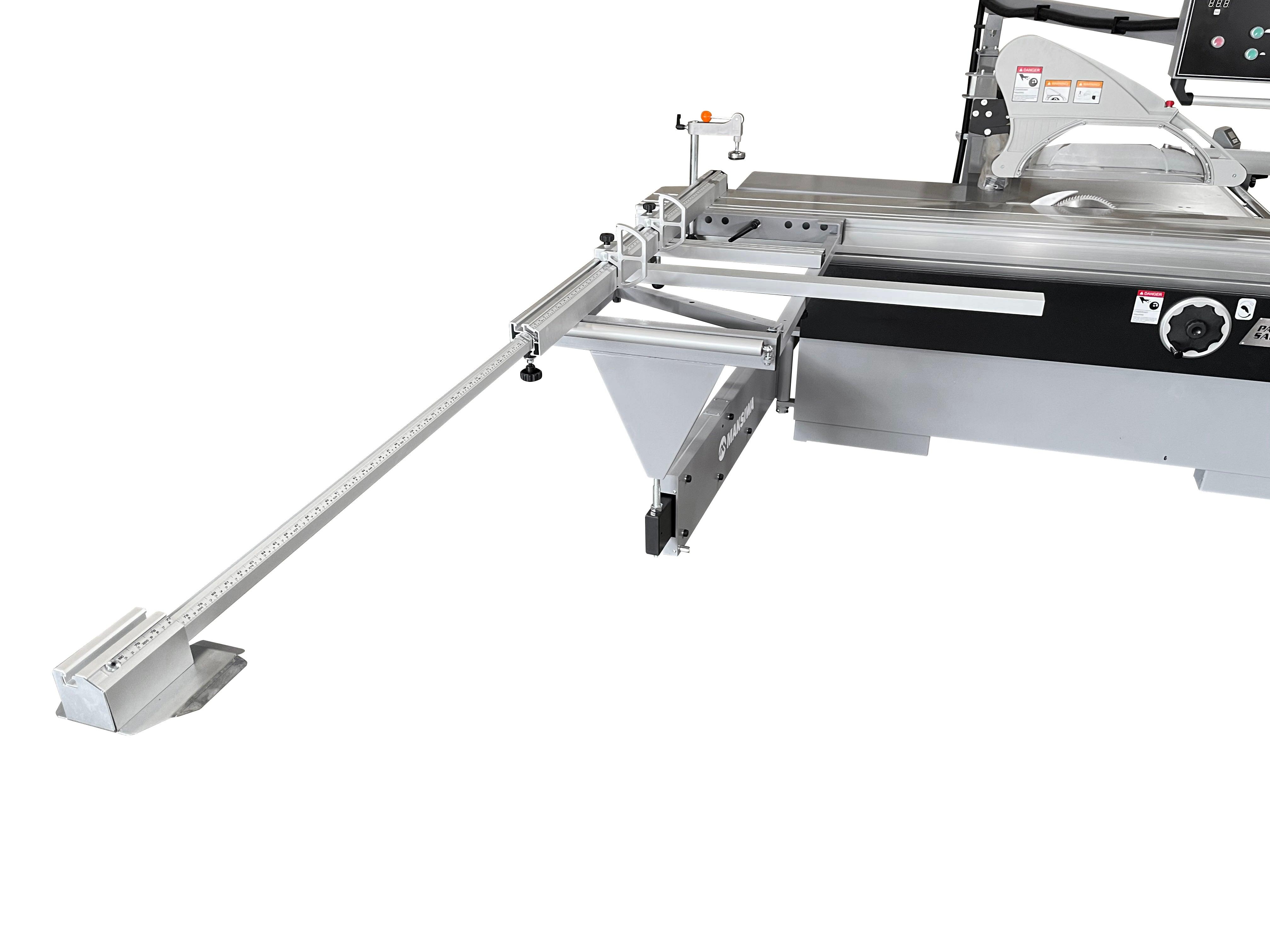

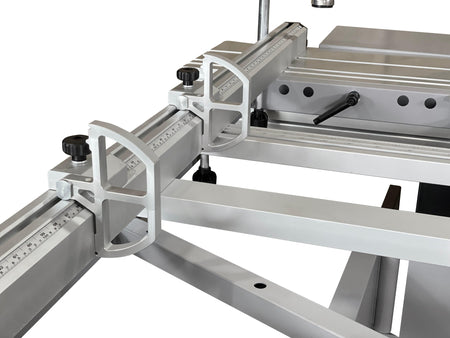

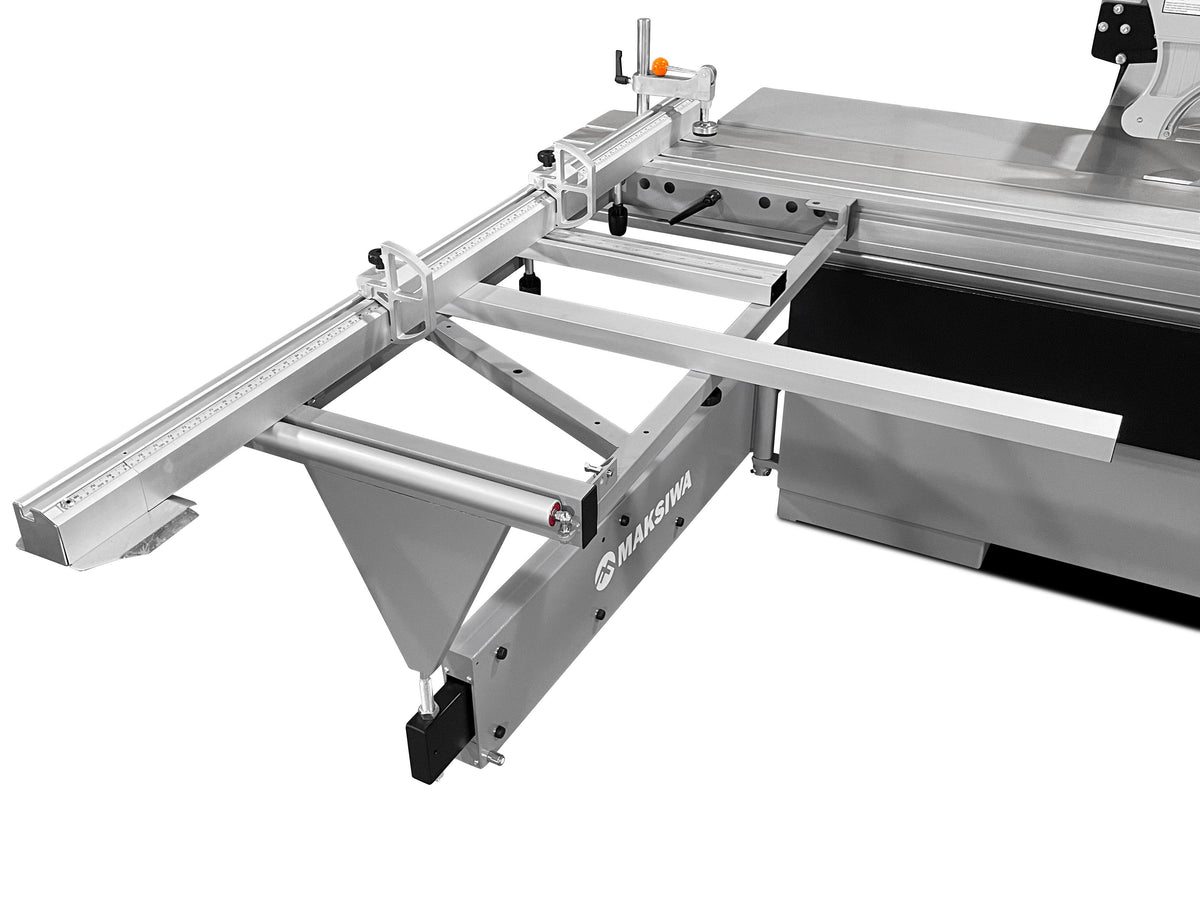

The anodized aluminum crosscut fence includes two solid flip stops, a telescoping function up to 140″, 45° miter capability, and an ergonomic design that improves tape readability.

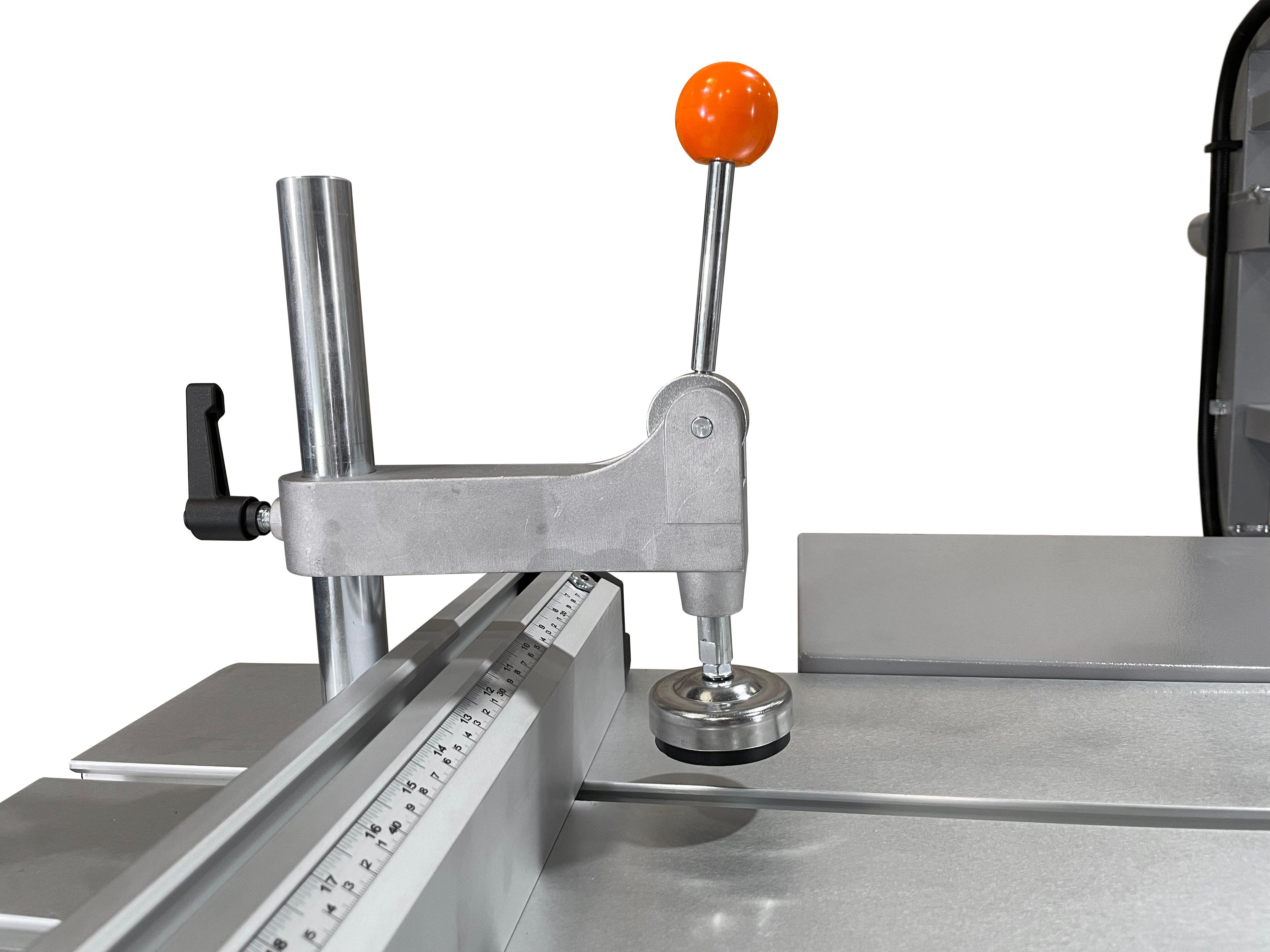

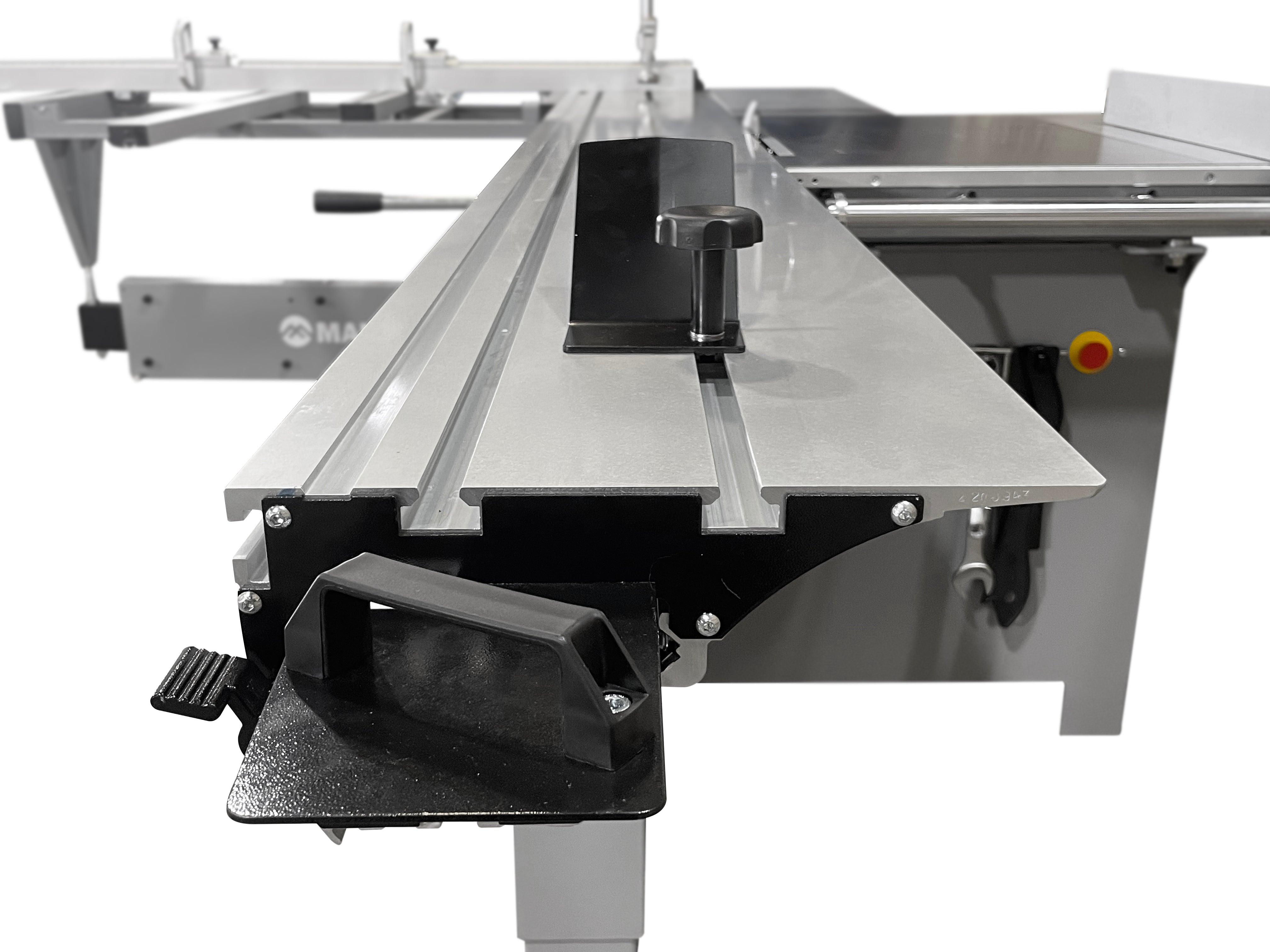

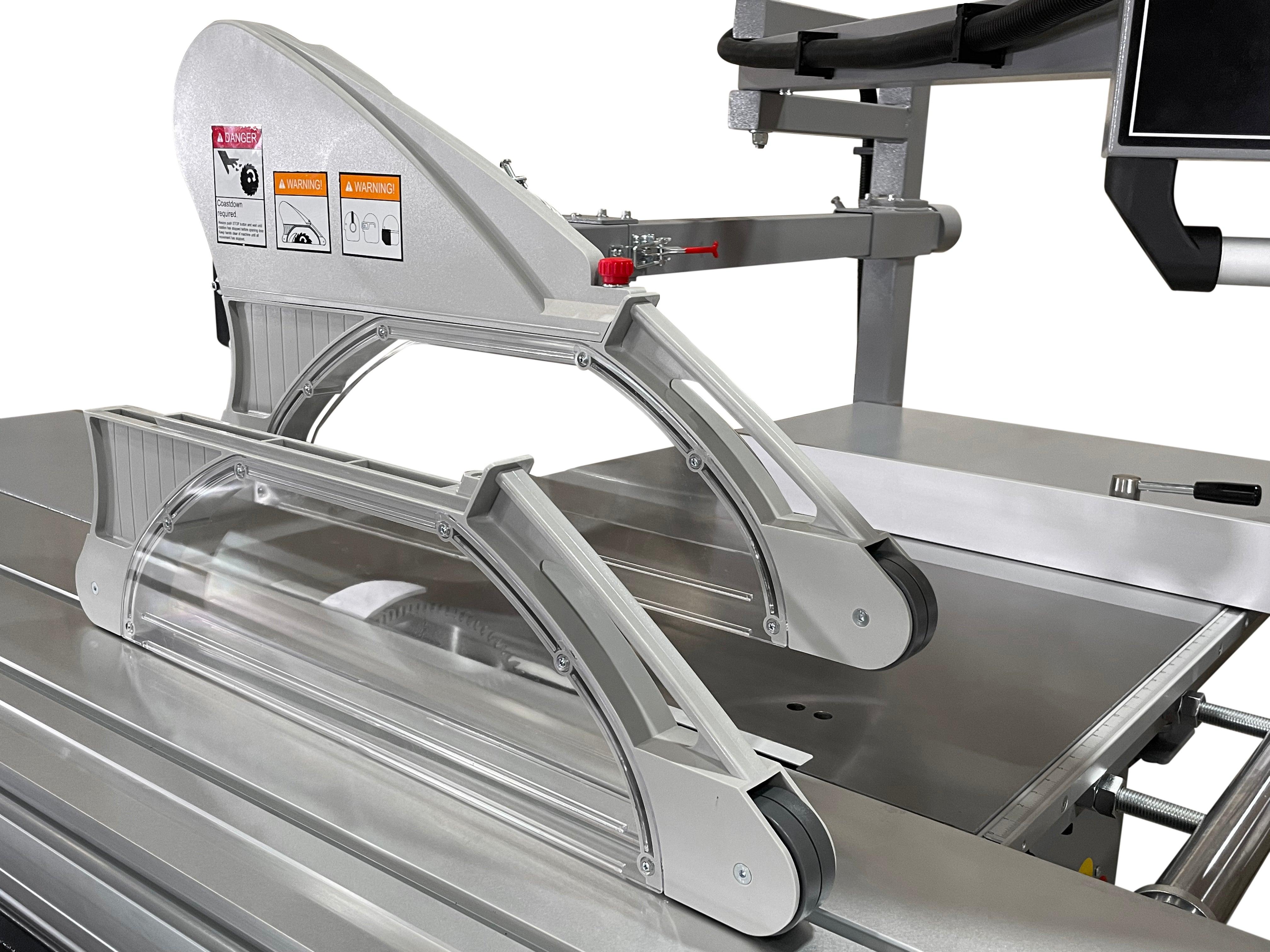

The machine comes standard with two overhead blade guards (90° and 45°) featuring a quick-change and swing-away function, allowing fast switching and easy repositioning when needed. Included accessories consist of a push handle, hold-down clamp, and wedge clamp.
Key Features
| Feature | Description |
|---|---|
| Main Motor | 7.5 HP – 3 Phase |
| Scoring Motor | ¾ HP |

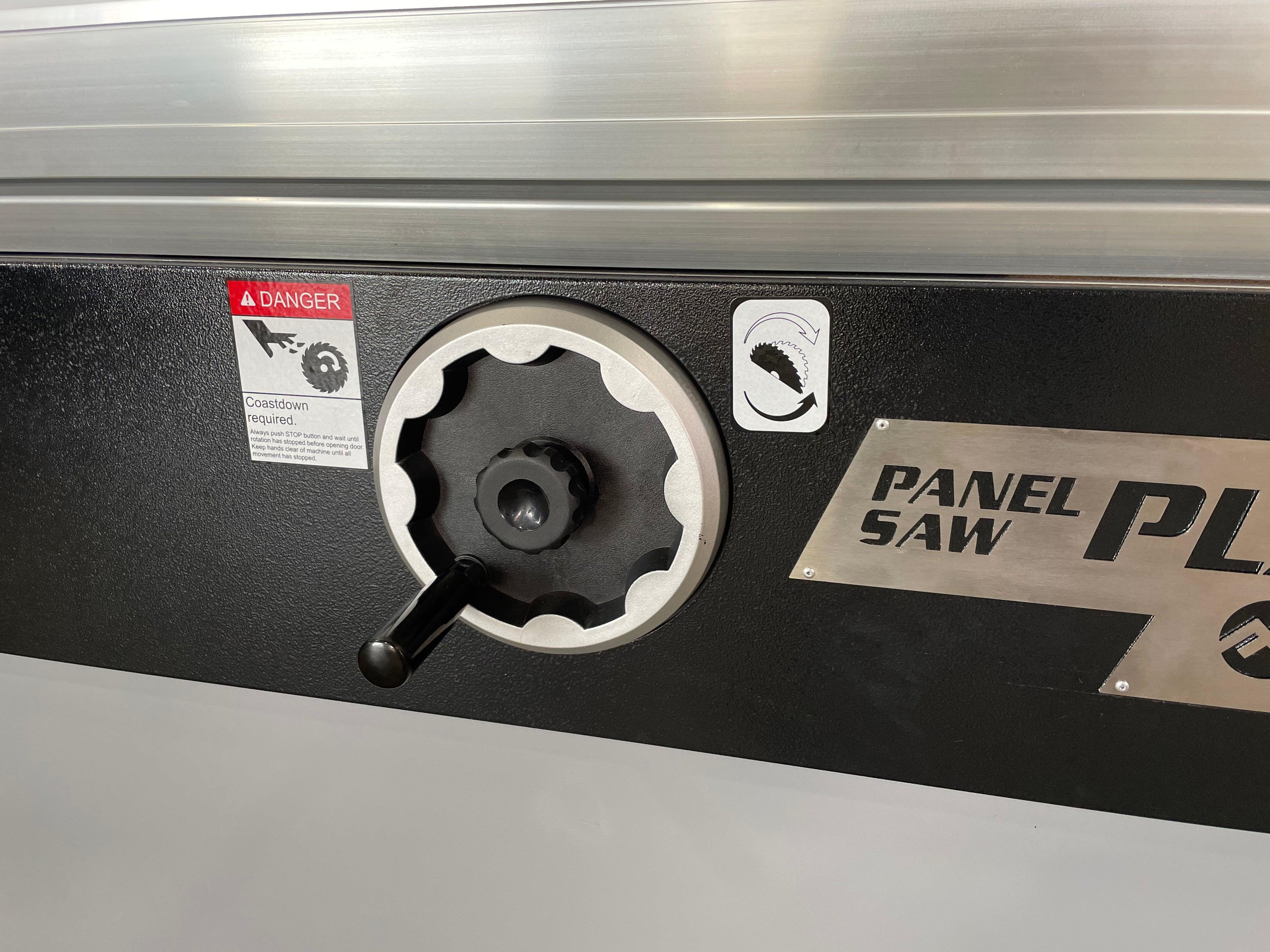

| Blade Tilt | 90° to 45° |

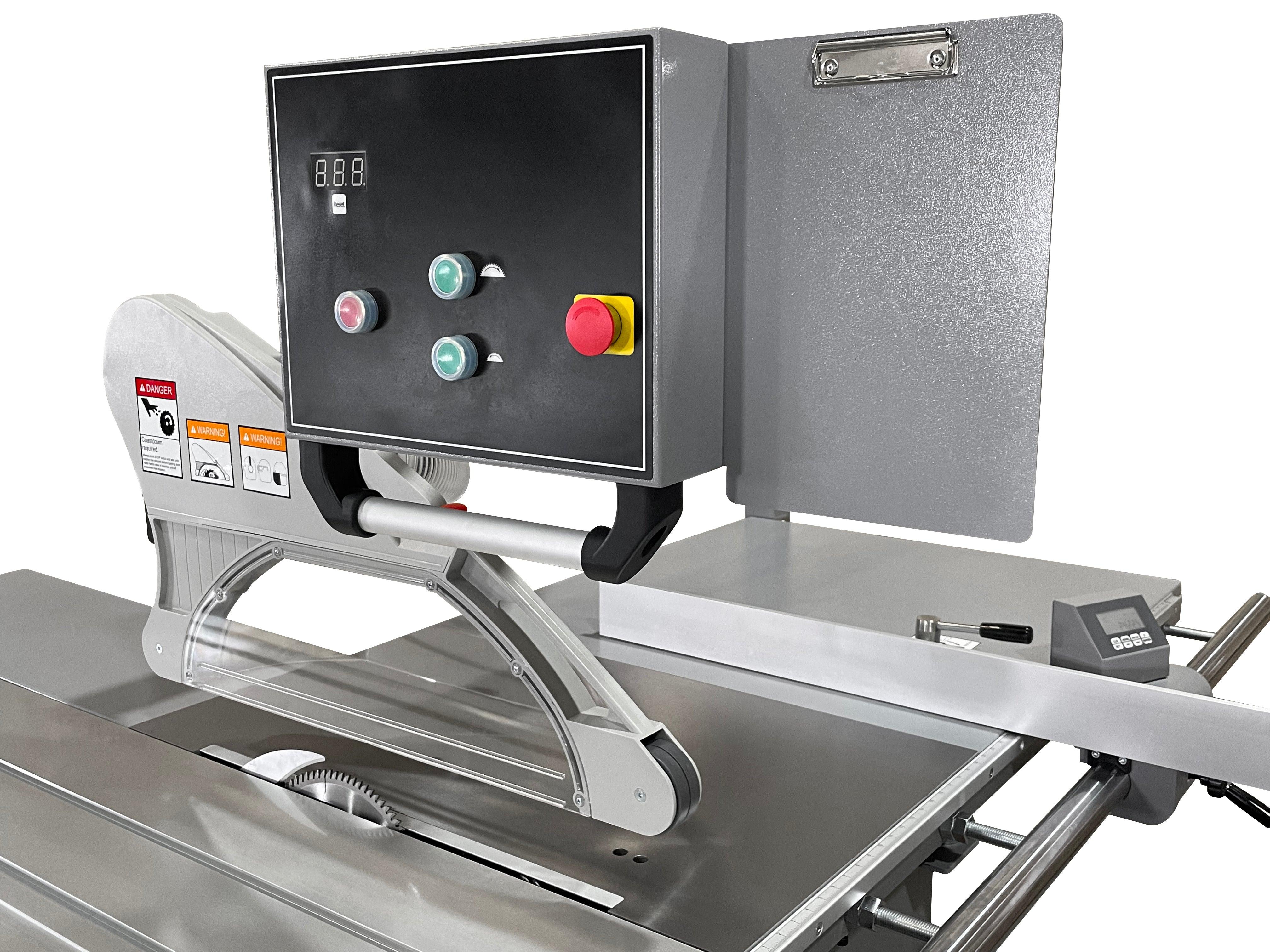

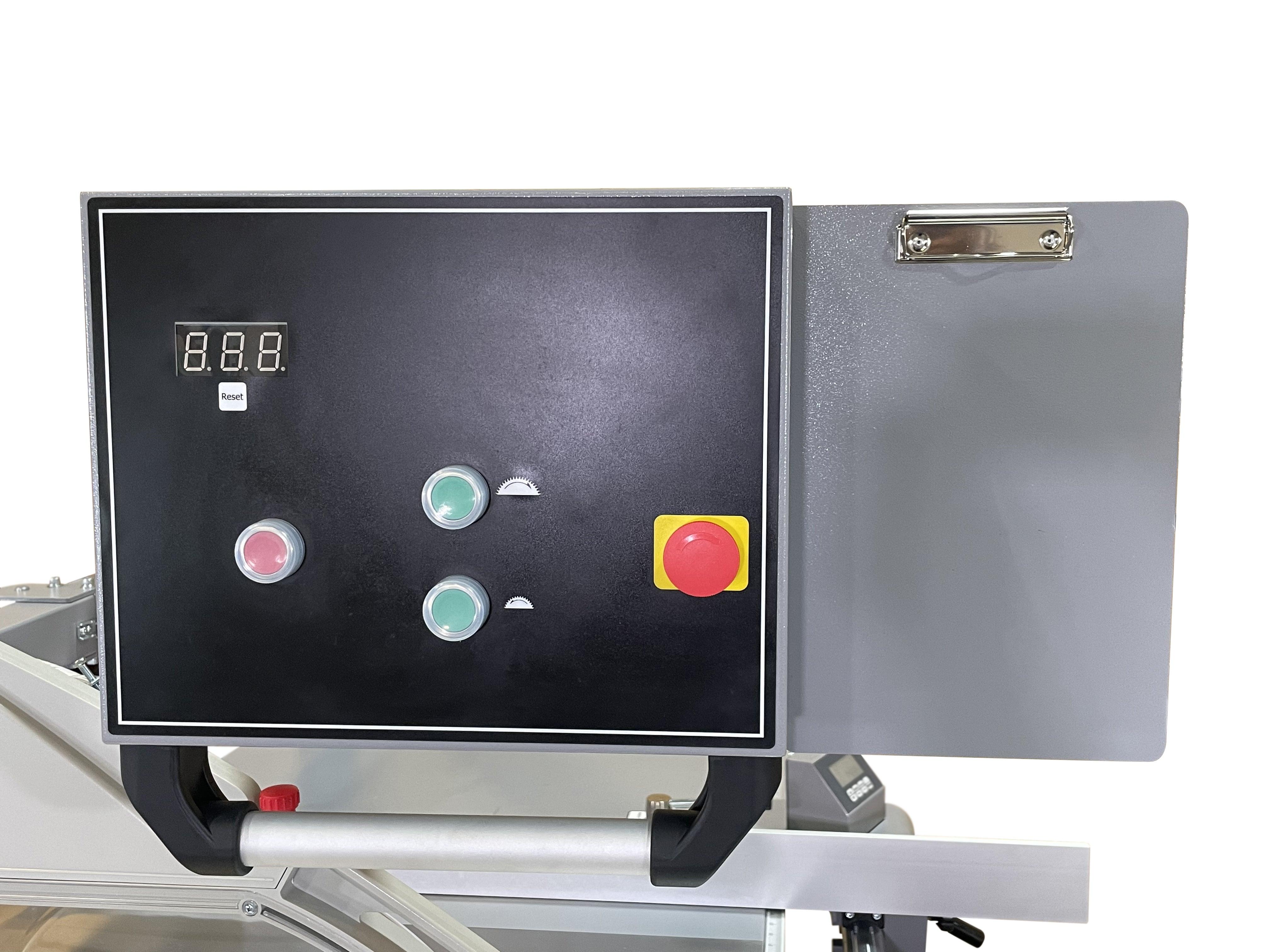

| Digital Blade Angle Display | Included |
| Rip Fence | European style 51″ with digital readout and micro adjustment |
| Crosscut Fence | Aluminum extruded with (2) flip stops and miter adjustment |
| Overhead Blade Guard | CE compliant with dust port |

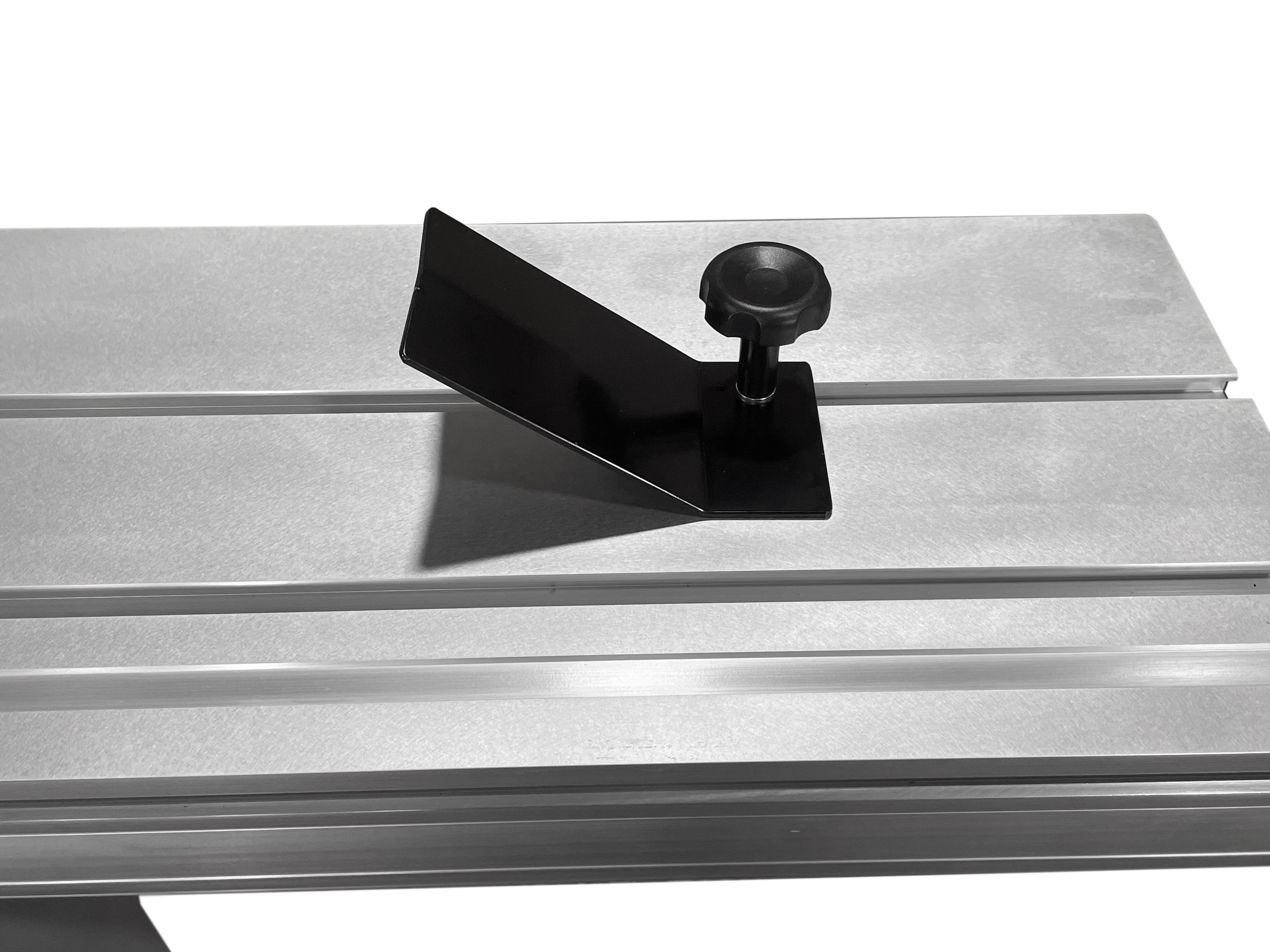

| Solid Wood Cutting | Includes eccentric clamp and wedge |
| Warranty | 2-Year Warranty |
Blade Specifications
| Specification | Details |
|---|---|
| Main Blade Diameter | 12″ / 305 mm |
| Scoring Blade Diameter | 4 ¾″ / 120 mm |
| Max Depth of Cut | 3 15/16″ |
Included at No Additional Cost
• Free Shipping
• Free Video Conference Call Installation
• Free Virtual Training Session
