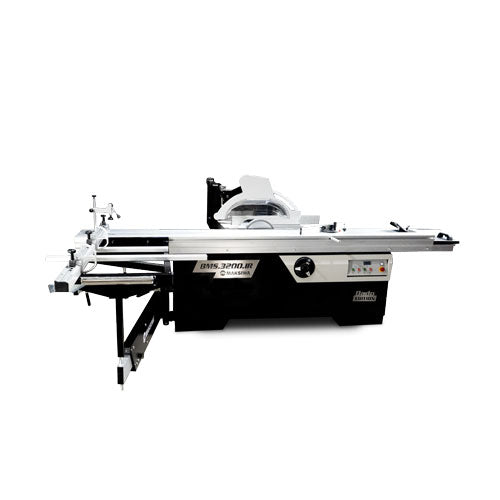

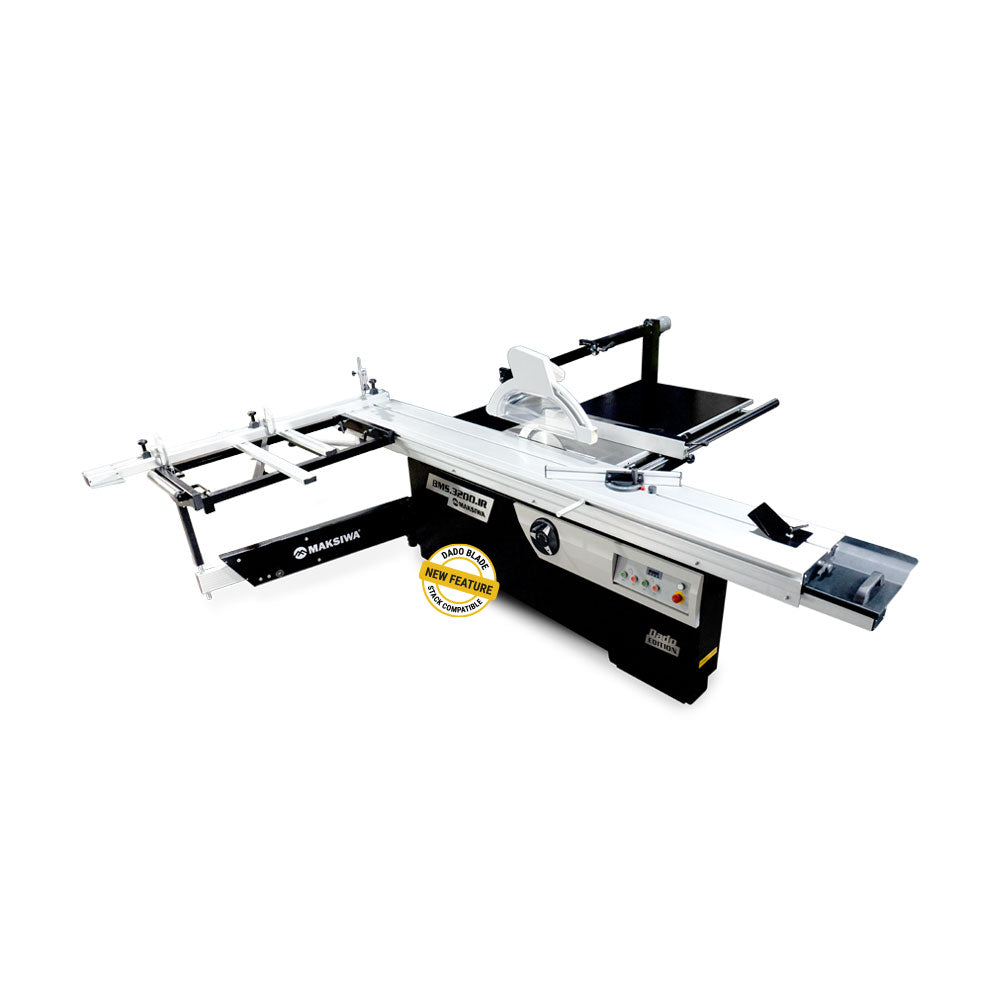

Maksiwa BMS.3200.IR – Black Edition
Sliding Panel Saw 126" | Dado Blade & Scoring Blade
Model: BMS.3200.IR
Product Overview
Introducing the BMS.3200.IR Dado Edition, the newest evolution in Maksiwa’s best-selling sliding panel saw series. This redesigned model reflects our commitment to delivering superior performance while maintaining affordability.
Equipped with dado blade capability, the BMS.3200.IR is a versatile and powerful addition to any workshop. It is available in 1 Phase and 3 Phase 220V configurations, allowing seamless integration into different electrical setups. A 5 HP main motor combined with a 1 HP scoring motor delivers the strength and reliability required for demanding applications.

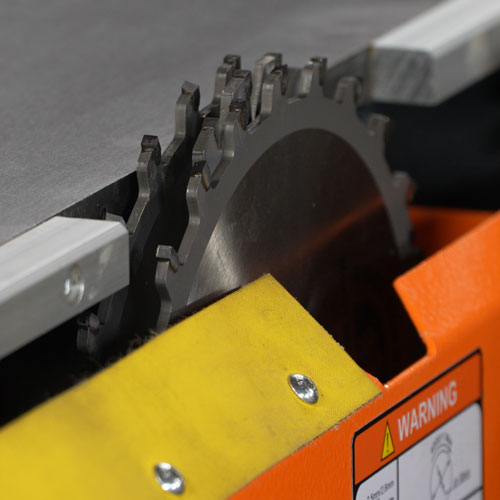

Dado Blade Capability
Dado stacks are essential for producing clean, seamless joinery. The BMS.3200.IR is compatible with 8″ dado blades and offers a maximum dado capacity of 1-1/4″. This machine is engineered to deliver perfectly straight, chip-free, parallel cuts, enhancing overall work quality.
The easy blade access design allows quick and efficient switching between dado and standard blades, improving workflow and productivity.
Motor & Performance
The BMS.3200.IR features a 5 HP main motor and is available in both 1 Phase and 3 Phase 220V options, ensuring compatibility with your shop’s electrical requirements. A dedicated 1 HP scoring motor provides precise, clean cuts on laminated and finished materials.
Warranty
• 2-Year Warranty
Additional Information
General Specifications
| Specification | Details |
|---|---|
| Weight | 1,470 lbs |
| Machine Dimensions (Closed) | L 133” × W 135” × H 65” |
| Machine Dimensions (Max) | L 192” × W 280” × H 65” |
| Sliding Table Dimensions | 14 3/4” × 132” |
| Sliding Table Max Travel | 280” |
| Fixed Table Max Width | 52” |
| Guide Size (Closed) | 71” |
| Guide Size (Max) | 128” |

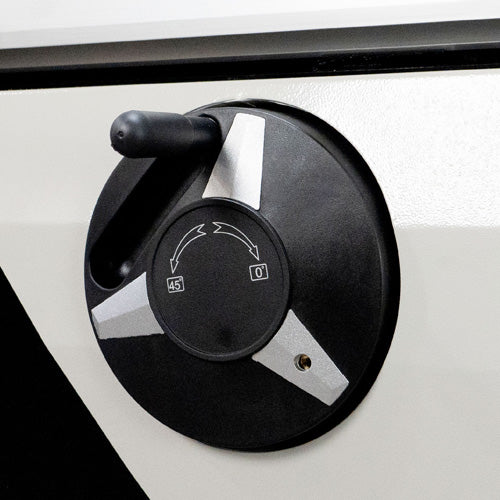

| Max Tilt | 45° |
| Max Depth of Cut | 3” |
| Max Cutting Length | 120” |

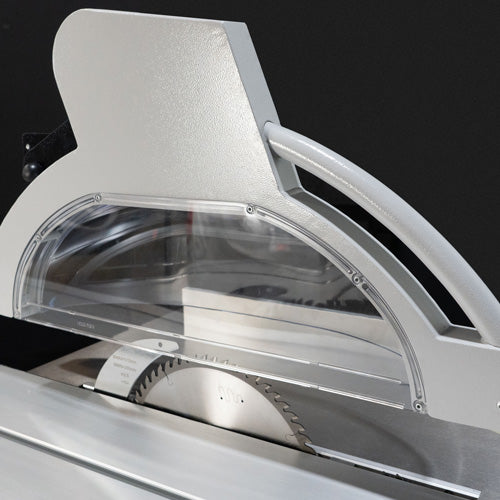

| Blade Cover | 1 |

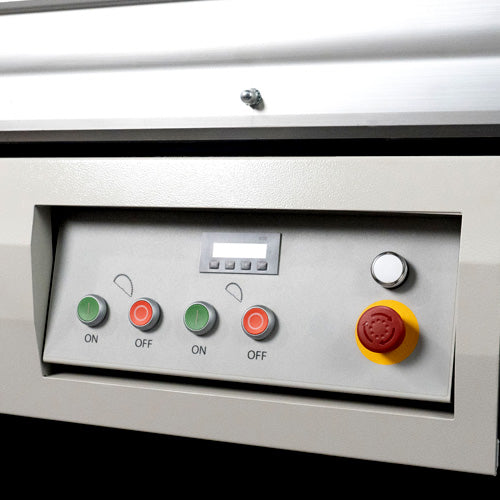

| Lockable Main Power Switch | 1 |
| Emergency Stop Buttons | 2 |
Blade Specifications
| Specification | Details |
|---|---|
| Main Blade Diameter | 12” |
| Main Blade Arbor Size | 1 3/16” |
| Scoring Blade Diameter | 4 3/4” |
| Scoring Blade Arbor Size | 25/32” |
Electrical Options
3 Phase – 380V
| Component | Specification |
|---|---|
| Main Motor | 3 HP – 8 Amps |
| Main Blade Speed (No Load) | 3,500 RPM |
| Scoring Motor | 3/4 HP – 1.8 Amps |
| Scoring Blade Speed (No Load) | 3,500 RPM |
3 Phase – 220V
| Component | Specification |
|---|---|
| Main Motor | 5 HP – 15 Amps |
| Main Blade Speed (No Load) | 3,500 RPM |
| Scoring Motor | 3/4 HP – 3 Amps |
| Scoring Blade Speed (No Load) | 3,500 RPM |
1 Phase – 220V
| Component | Specification |
|---|---|
| Main Motor | 5 HP – 20 Amps |
| Main Blade Speed (No Load) | 3,400 RPM |
| Scoring Motor | 3/4 HP – 5.5 Amps |
| Scoring Blade Speed (No Load) | 3,400 RPM |
