Cantek Multi Blade Gang Ripsaw | MRS300
$39,700.00
Skip to product information
Cantek Multi Blade Gang Ripsaw | MRS300
$39,700.00
Details
A powerful multi ripsaw for the most demanding ripping applications.

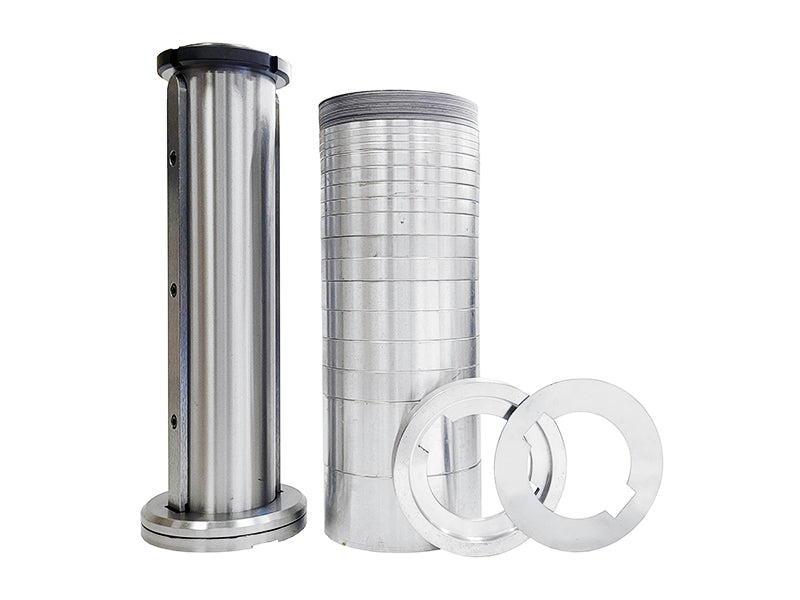

The Cantek MRS300 Multi Blade Gang Ripsaw is a true production multi-ripsaw with an industrial cast-iron machine body. The precision cast iron chain and track system allows for maximum durability and precision, resulting in superior cut quality and accuracy. The removable saw sleeve system allows for fast changeovers between ripping operations leading to increase throughput. The MRS300 is also equipped with a powerful 50HP standard saw motor for maximum cutting depth with multiple rip blades and increase feed speeds. A minimum ripping length of 11.8” can be achieved with the optional short stock attachment.
- Straight line caterpillar feeding with heavy guided chain
- Precision extended cast iron rip fence runs on large diameter fence bar for quick rip fence adjustment
- Automatic centralized lubrication system for lubricating the chain and race assembly ensuring long life and precision
- Automatic Star-Delta starter (slow speed start) to the main motor and low voltage controls
- (3) sets of Anti-Kickback Fingers: (2) top + (1) bottom for operator safety
- Powered Rise & Fall to the pressure rollers allows for quick thickness adjustment
- CE style European guard & safety features
- Optional quick setting collars which eliminate the need for spacers which allow for fast changeovers between desired ripping widths
- Optional laser projection lights
Specs
INCH
METRIC
Maximum Working Thickness:
14” Blade – With short stock attachment
3.74”
95mm
14” Blade – Without short stock attachment
4.33”
110mm
15” Blade – Without short stock attachment
4.72”
120mm
Minimum Length – without short stock attachment
23”
585mm
– with short stock attachment
11.8”
300mm
Maximum cutting width
11.8”
300mm
Distance from column to center of chain
14.17”
360mm
Sawblade diameter
8” to 15”
203 to 380mm
Saw arbor sleeve diameter (Blade bore)
70 mm w/ keyways
Saw arbor diameter
50 mm
Saw arbor speed
3800 RPM
Saw motor HP
50 HP
Thickness setting motor
½ HP motor

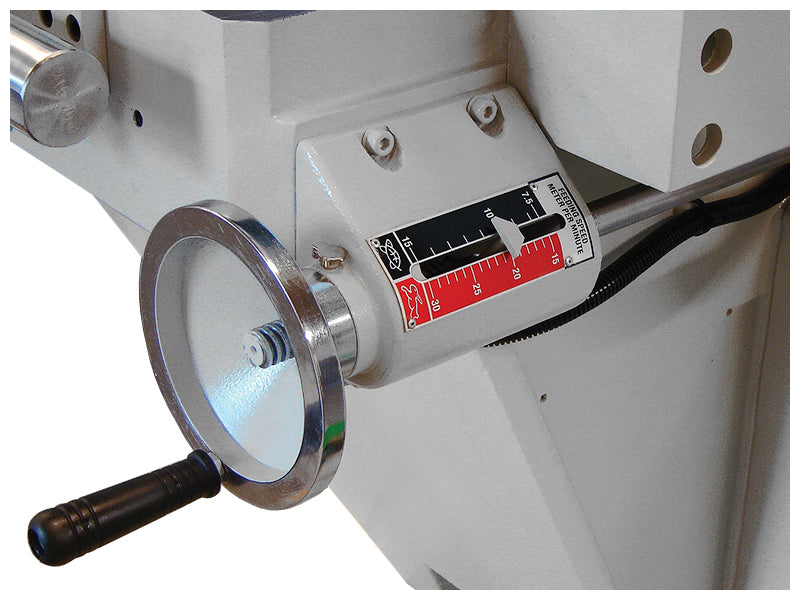

Feed speeds
25 – 100 FPM
7.5~30 m/min
Feed motor HP
2 HP
Dust hood diameter
2 @ 6”
2 & 150mm
Table size
60″ x 30”
1530x760mm
Table height from floor
33.5″
851mm
Net weight
4510 lbs
2050 kgs
Shipping weight
5060 lbs
2300 kgs
Machine dimensions
82.68” 59” x 56 ½”
2100x1500x1435mm
Shipping dimensions
70.87” x 66.93” x 63″
1800x1700x1600mm
Electrics
460/3/60* = 69.5 Full Load Amps
