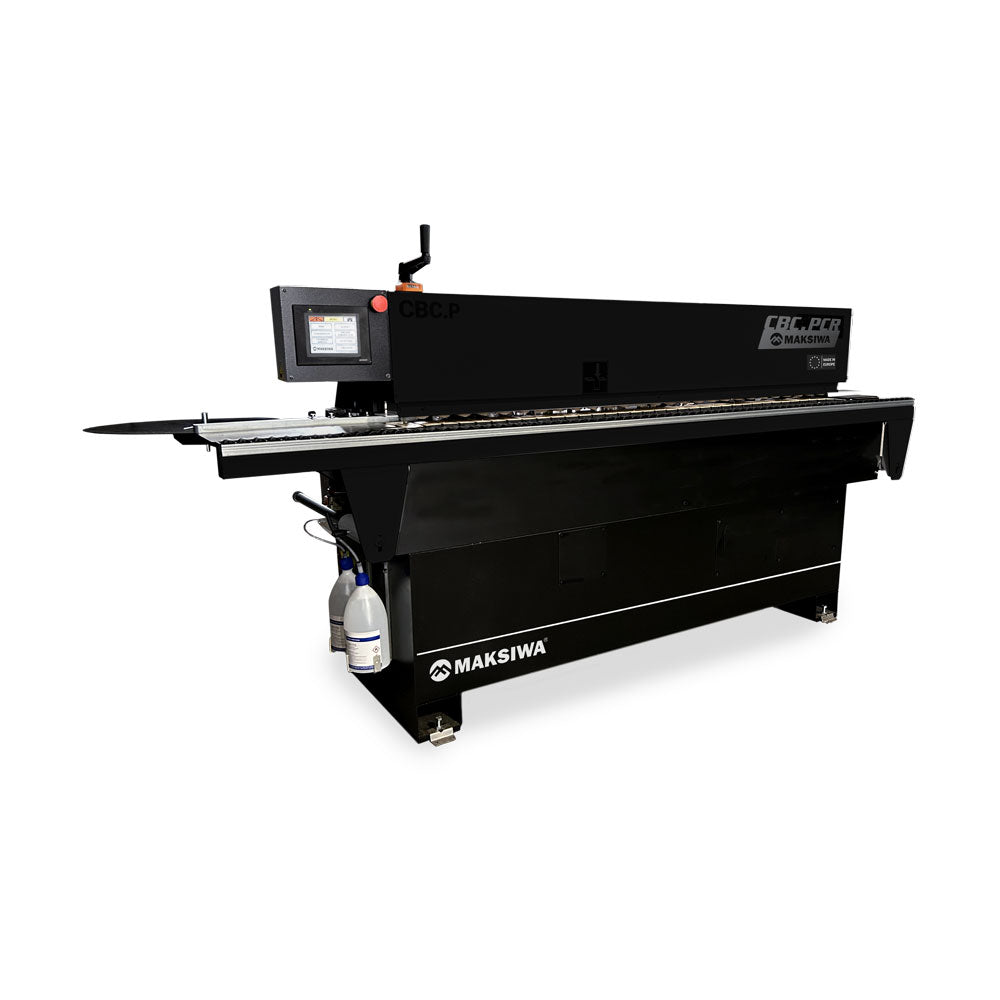

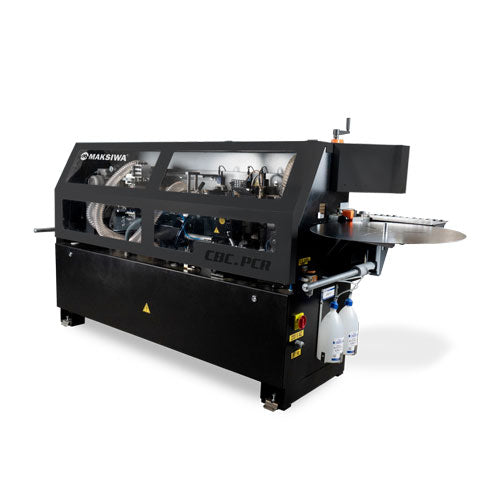

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm.
Pre-milling & Corner Rounding in a small footprint
Features: • Automatic Feeding speed: 18 ft/min/5.5m/min • Panel thickness Min/Max: 21/64" - 1 31/32"/8 - 50mm • Max Pre-milling Height: 1"/30mm • Edgebanding thickness: 0.0157" - 0.118"/0.4-3mm • Glue Pot Capacity: 3.3lb./1.5Kg • Max Edgebanding Height: 2"/51mm • Minimum panel width: 3"/75mm • Minimum panel length: 7 7/8"/200mm • Extendable Panel Support Rail Length: 103"/2627mm • Extension table Max Width: 54"/1371mm • Size of Dust Collector Ports: 6"/150mm • Minimum Dust Collection Requirements: 1236 CFM/2100 m3/h • Air Pressure Requirement: 14 SCFM @ 87PSI/0.7 Mpa • Edgebanding coil Support Diameter: 59"/1498mm • Recommend Glue Temperature Range: 356°F - 410°F/180°C - 210°C • Max. machine dimensions (LxWxH): 119"x 40 16/16"x 48. 7/16"/3026 x 1036 x 1230 mm • Net weight: 1411lb./640Kgs • Glue Type: Granulated Hot-Melt EVA/PUR • Sound Rating: 80 dB • Electrical Requirement: 1 Phase 220V 30 Amps 60 Hz • Conveyer Motor: 60 Hz 1390 RPM .66 kw • Top/Bottom Trimmer HFM: 200 Hz 12,000 RPM .27kw • End Trimmer Motor HFM: 200 Hz 12,000 RPM .27kw • Front/Rear Pre-Milling HFM: 150 Hz 9000 RPM .75/.25K • Top Buffing Motor: 60 Hz 1680 RPM .11kw • Bottom Buffing Motor: 60 Hz 1680 RPM .11kw Pre-Milling and Corner Rounding in a Small Footprint: • Edge Tape: 0.4-3 mm • Panel Thickness: 8-50mm • 1 Phase 220V 60Hz • Corner Rounding Unit • Glue Scraper Unit • Buffing Unit • End Trimming HF Motor • Pre-milling Unit 2 HF Motors with Diamond Cutters • XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System) • C.A.S.S - Cleaning Agent Spraying System • Glue Pot Capacity 1.5kg|3.3lb. Teflon Coated • Automatic feeding Speed 18 ft/min • Conveyor Chain Feed System for optimum results. • HF motors controlled by independent electronic converters • Net Weight 1411 lb.|640 kgs • Compact Design
PLC controlled by TFT touch screen
Corner Rounding

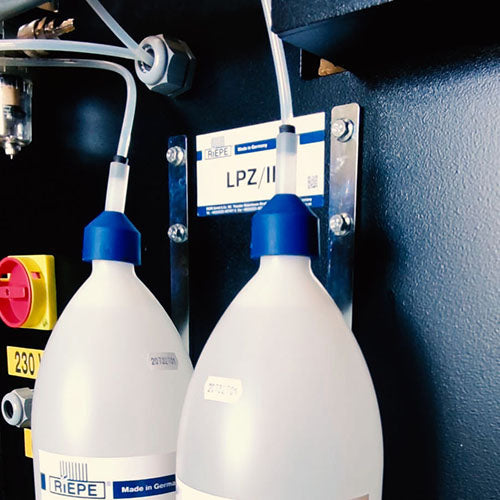

Cleaning agent Spray System
Buffing Unit
