Summer Deals | Maksiwa Edgebander Pre-Milling + FREE Dust Collector CBC.TPM
Sale price
$21,900.00
Regular price
$22,899.00
Skip to product information
Summer Deals | Maksiwa Edgebander Pre-Milling + FREE Dust Collector CBC.TPM
Sale price
$21,900.00
Regular price
$22,899.00
Details

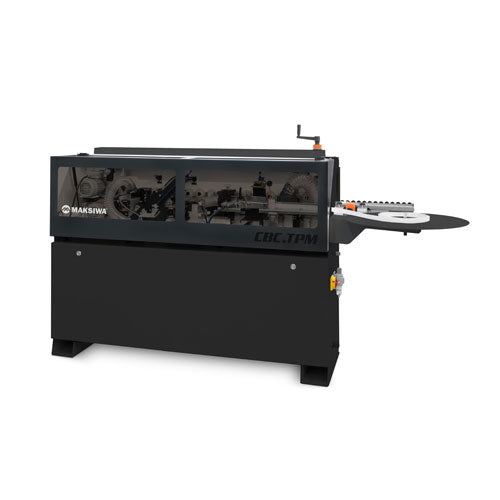

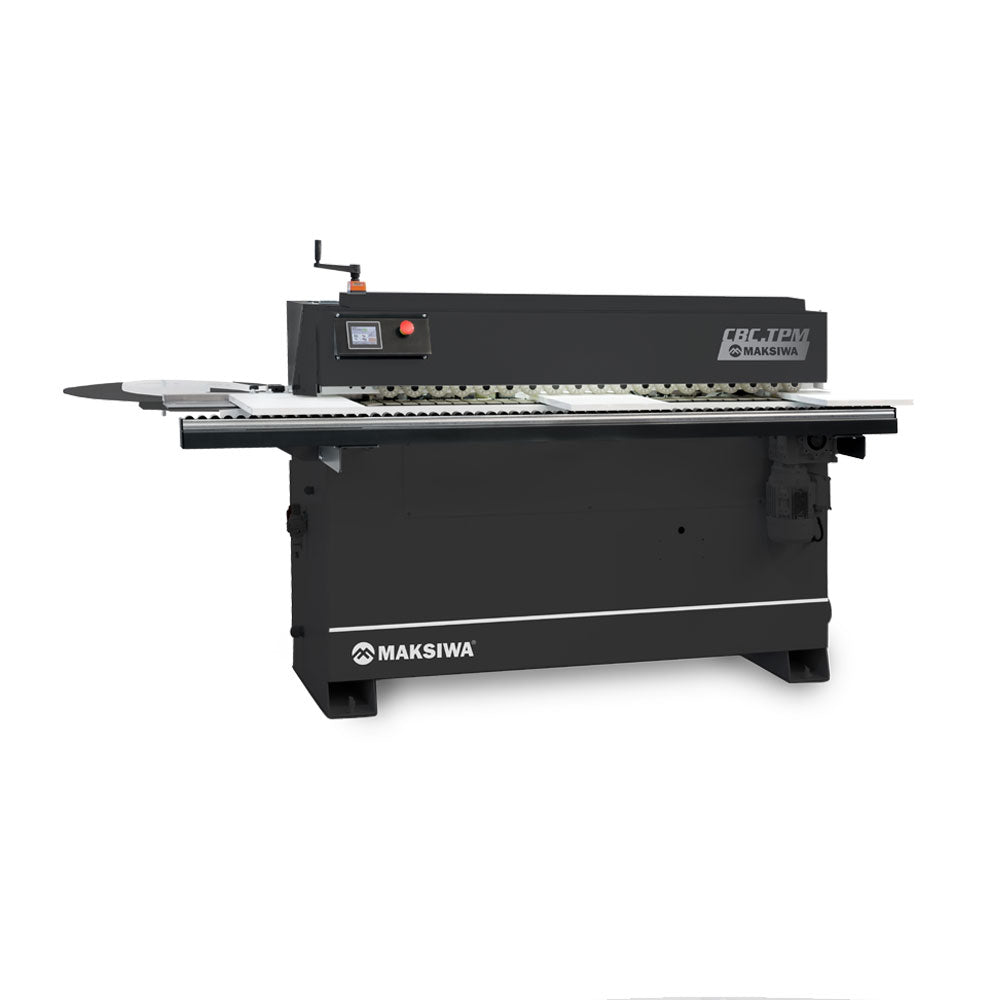

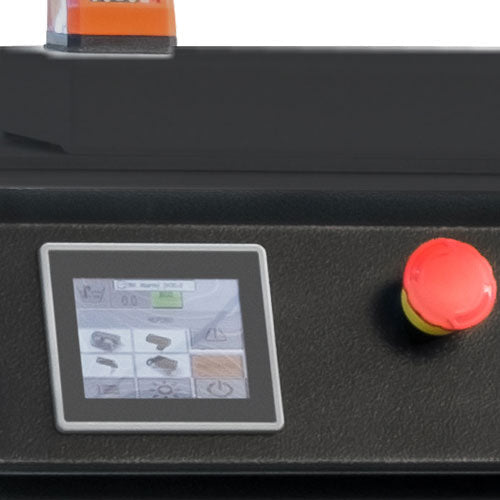

The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with touchscreen panel, this machine ensures ease of operation and delivers a flawless finish.
Pre-milling in a small footprint!
-
Features:
• Automatic Feeding speed: 21 ft/min/ 6.5m/min
• Panel thickness Min/Max: 13/32" - 1 3/4"/10 - 45mm
• Max Pre-milling Height: 1"/30mm
• Edgebanding thickness: 0.0157" - 0.07"/0.4-2mm
• Glue Pot Capacity: 1lb./0.5kg
• Max Edgebanding Height: 1"/30mm
• Minimum panel width: 1-3/4"/45mm
• Minimum panel length: 4-3/4"/120mm
• Extendable Panel Support Rail Length: 83-1/2"/2122mm
• Extension table Max Width: 10"/257mm
• Size of Dust Collector Ports: 6"/150mm
• Minimum Dust Collection Requirements: 1236 CFM/2100m3/h
• Air Pressure Requirement: 14 SCFM @ 87PSI/0.7Mpa
• Edgebanding coil Support Diameter: 59"/1498mm
• Recommended Glue Temperature Range: 356°F - 410°F/180°C - 210°C
• Max. machine dimensions (LxWxH): 93 1/2" x 40 13/16" x 53"/2376 x 1028 x 1347 mm
• Net weight: 1191lb./540Kgs
• Glue Type: Granulated Hot-Melt EVA
Motor/Electrical Specs: -
• Electrical Requirement: 1 Phase 220V 30 Amps 60 Hz
• Conveyor Motor: 60 Hz 1390 RPM .66 kw
• Top/Bottom Trimmer HFM: 200 Hz 12,000 RPM .27kw
• End Trimmer Motor: 200 Hz 12,000 RPM .27kw
• Front/Rear Pre-Milling HFM: 150 Hz 9000 RPM .75/.25Kw
• Top Buffing Motor: 60 Hz 1680 RPM .11kw
• Bottom Buffing Motor: 60 Hz 1680 RPM .11kw
Pre-Milling in a Small Footprint:
-
• Edge Tape: 0.4-2 mm
• Panel Thickness: 10-45mm
• Vertical Rounding
• 1 Phase 220V 60Hz
• Glue Scraper Unit

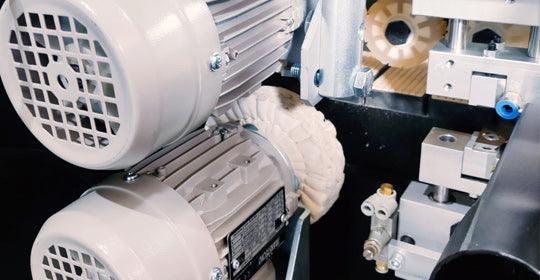

• Buffing Unit
• End Trimming HF Motor
• Pre-milling Unit 2 HF Motors
• Glue Pot Capacity 0.5kg|1lb. Teflon Coated
• Automatic feeding Speed 21 ft/min
• Net Weight 1911 lb.|540 kgs
• Compact Design
• Melamine/PVC/ABS/PP
