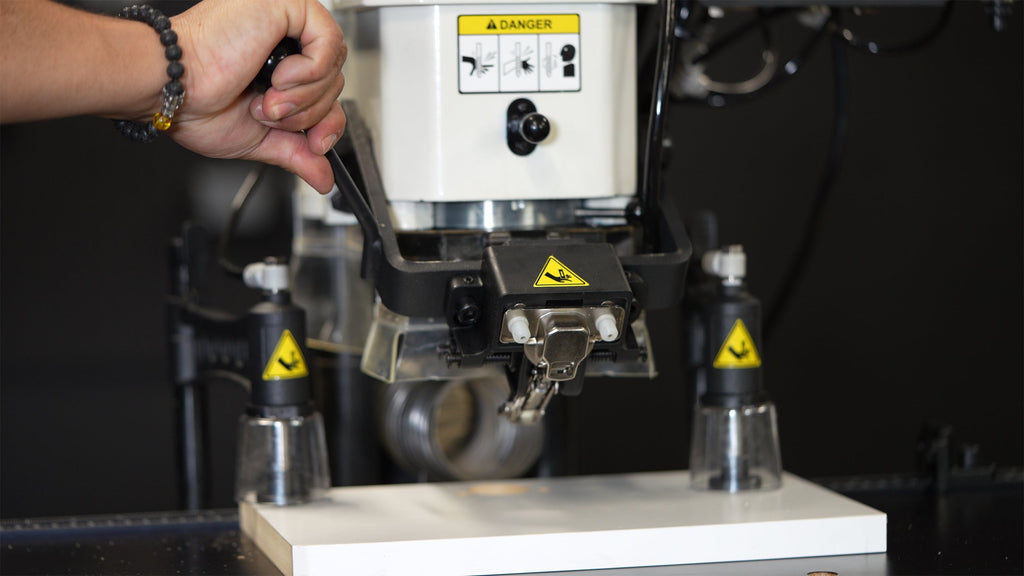

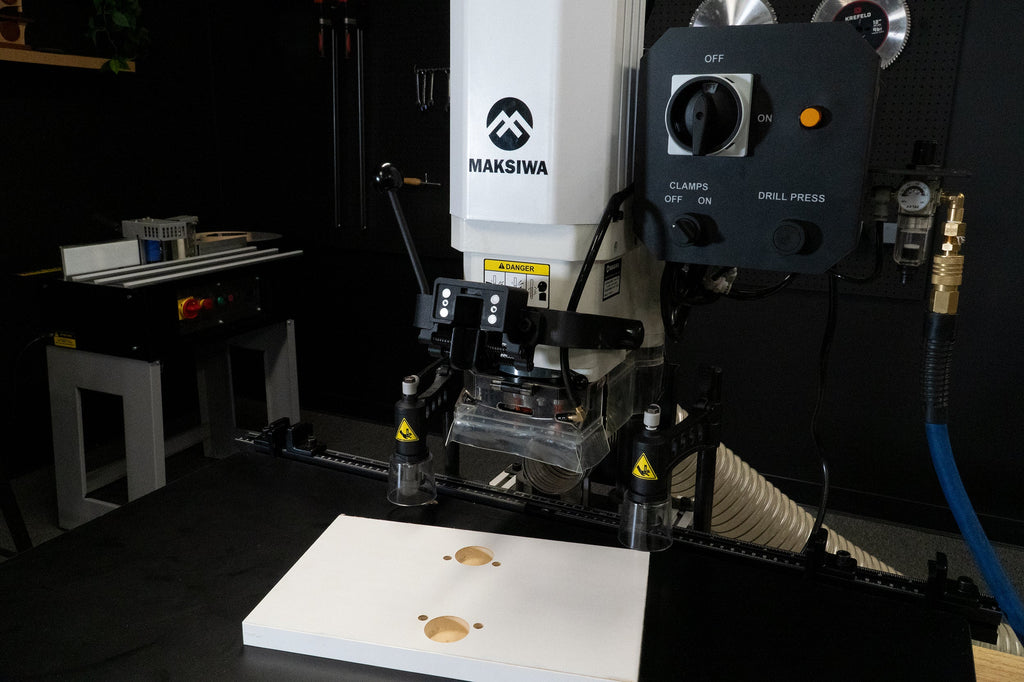

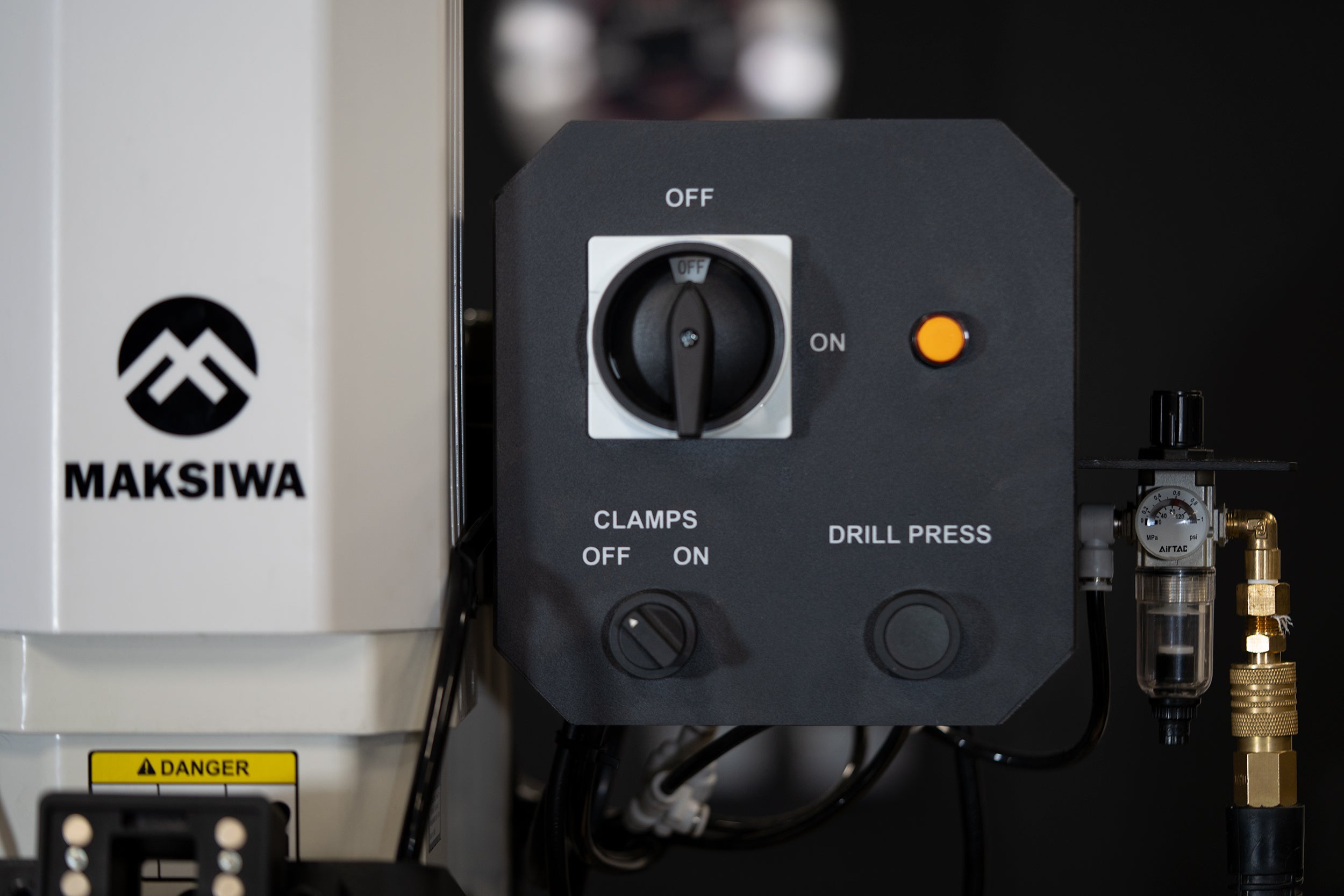

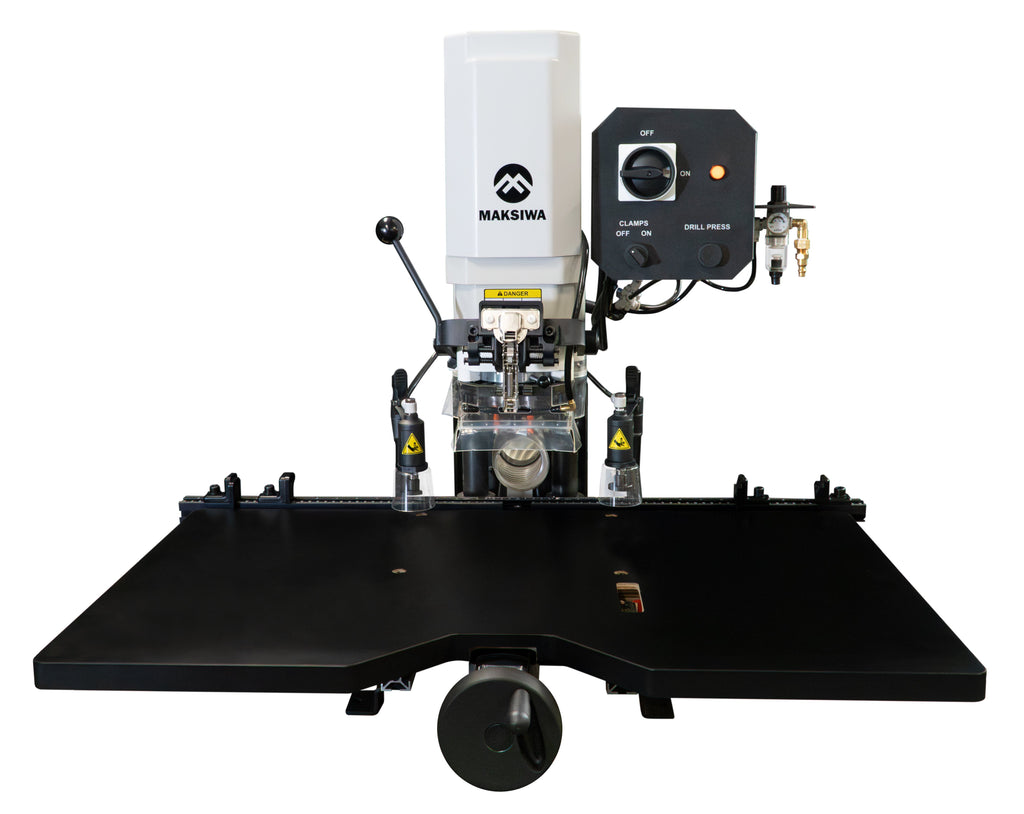

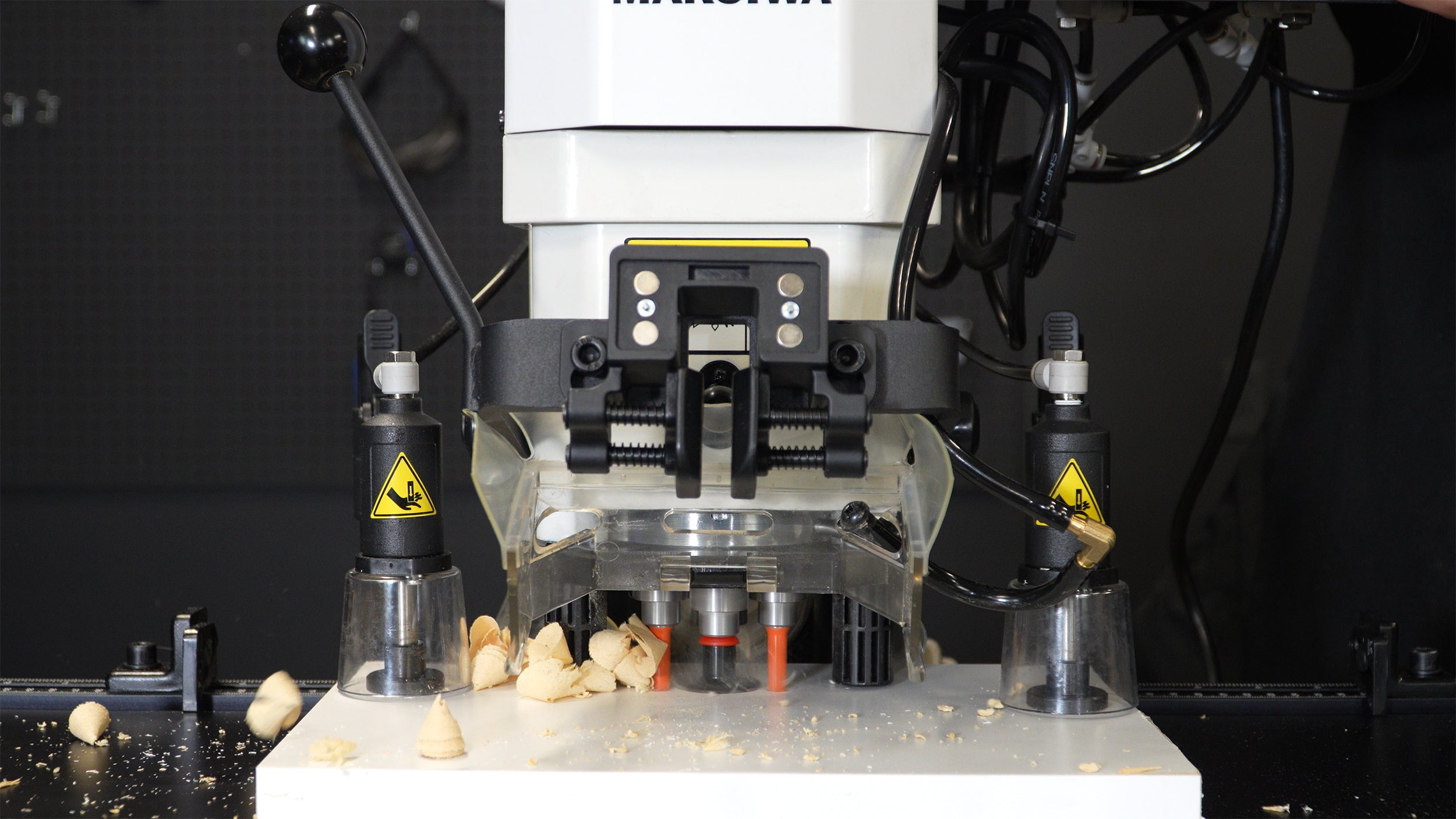

Maksiwa Hinge Boring Machine HBM.1000
$3,499.00
Skip to product information

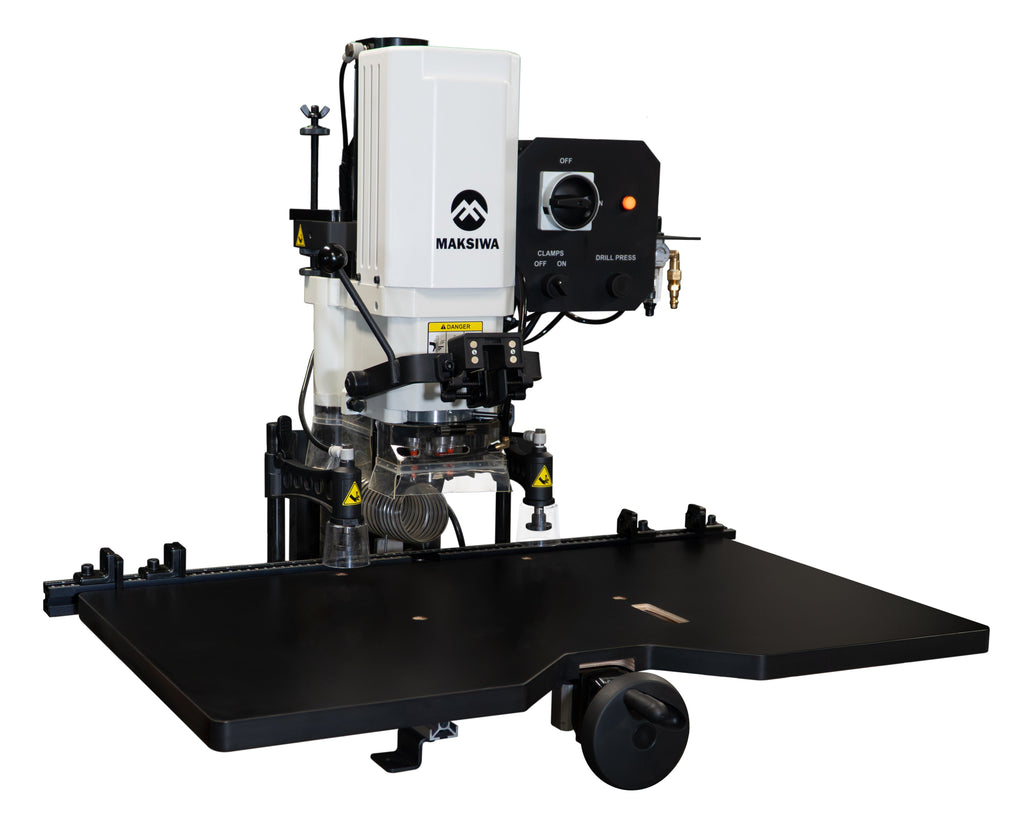

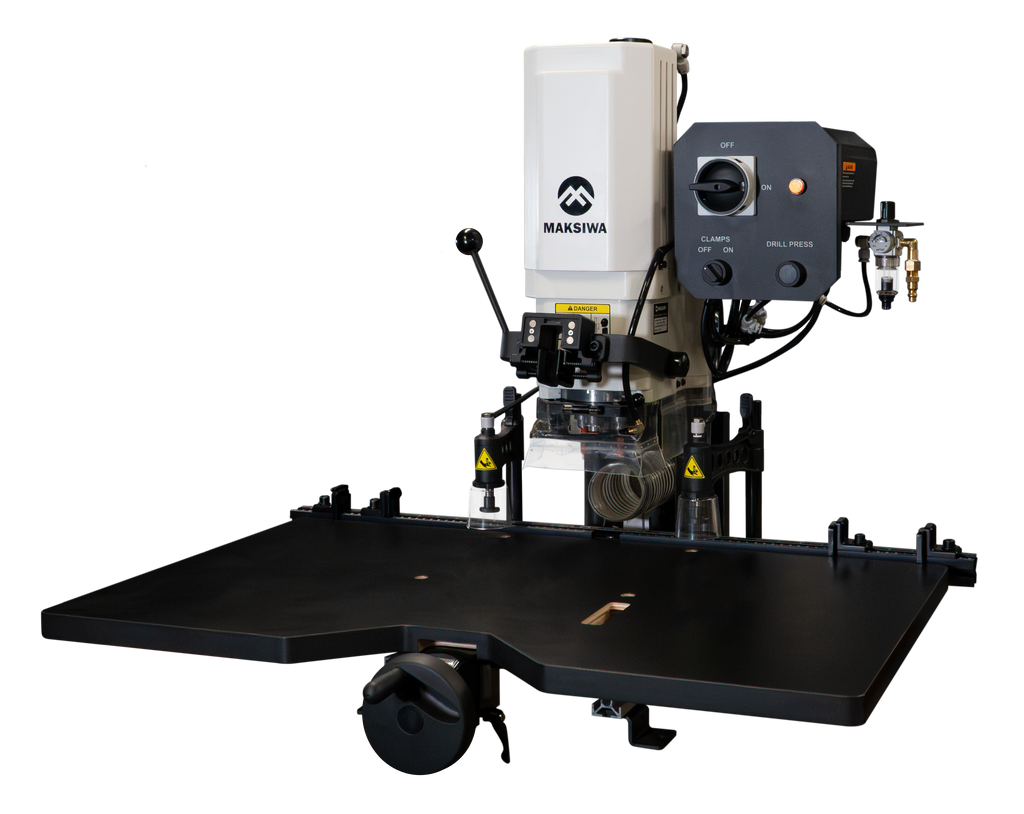

Maksiwa Hinge Boring Machine HBM.1000
$3,499.00
Details
HBM.1000

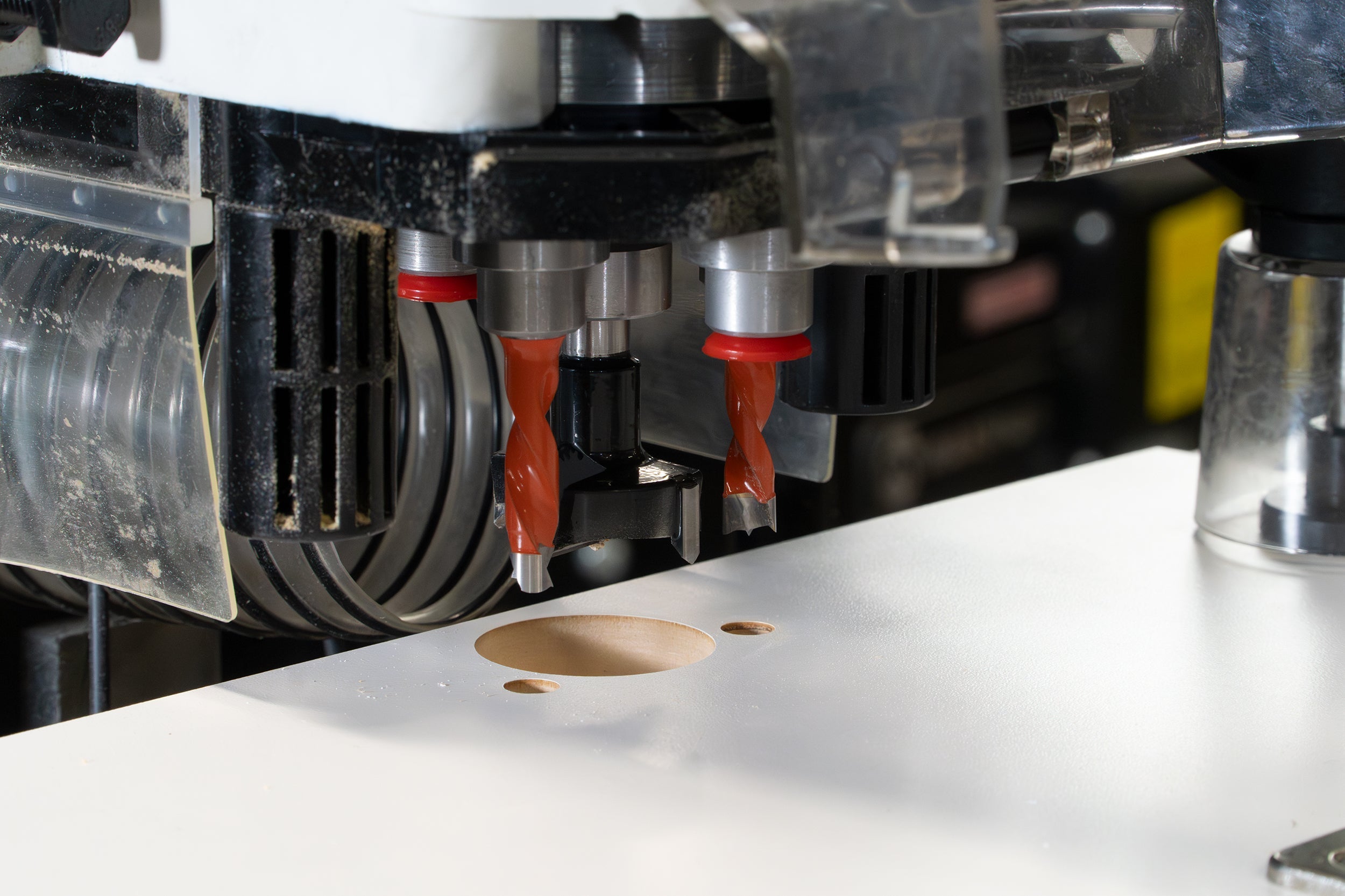

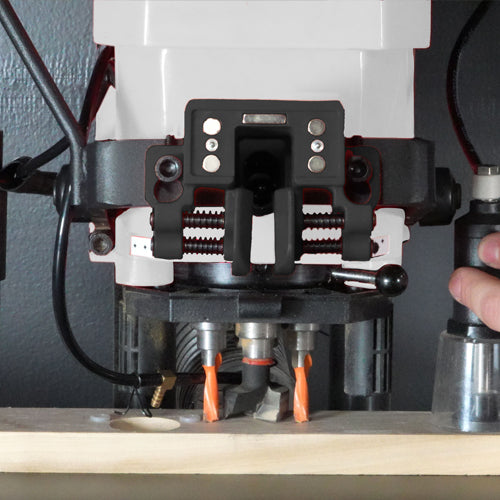

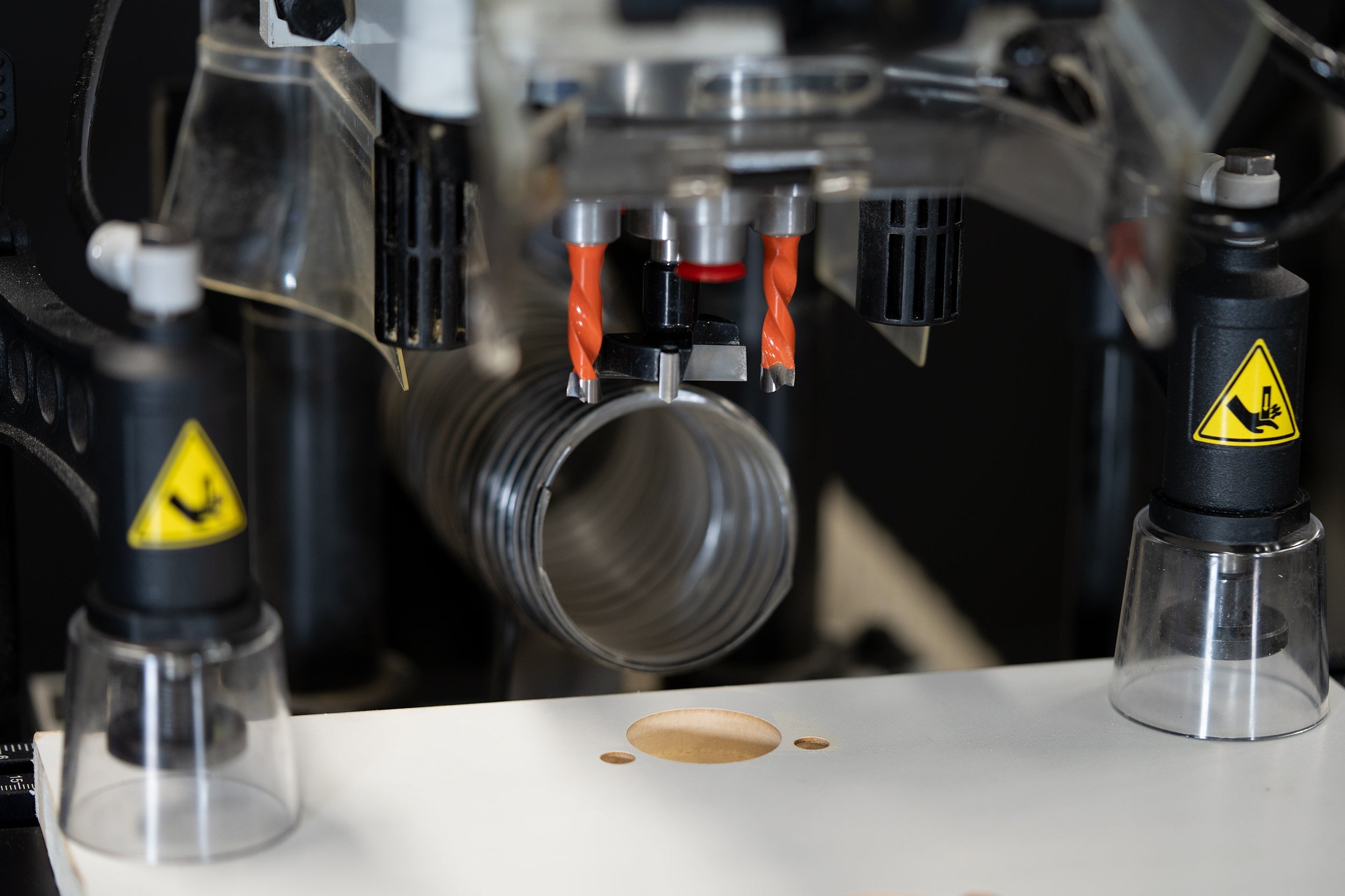

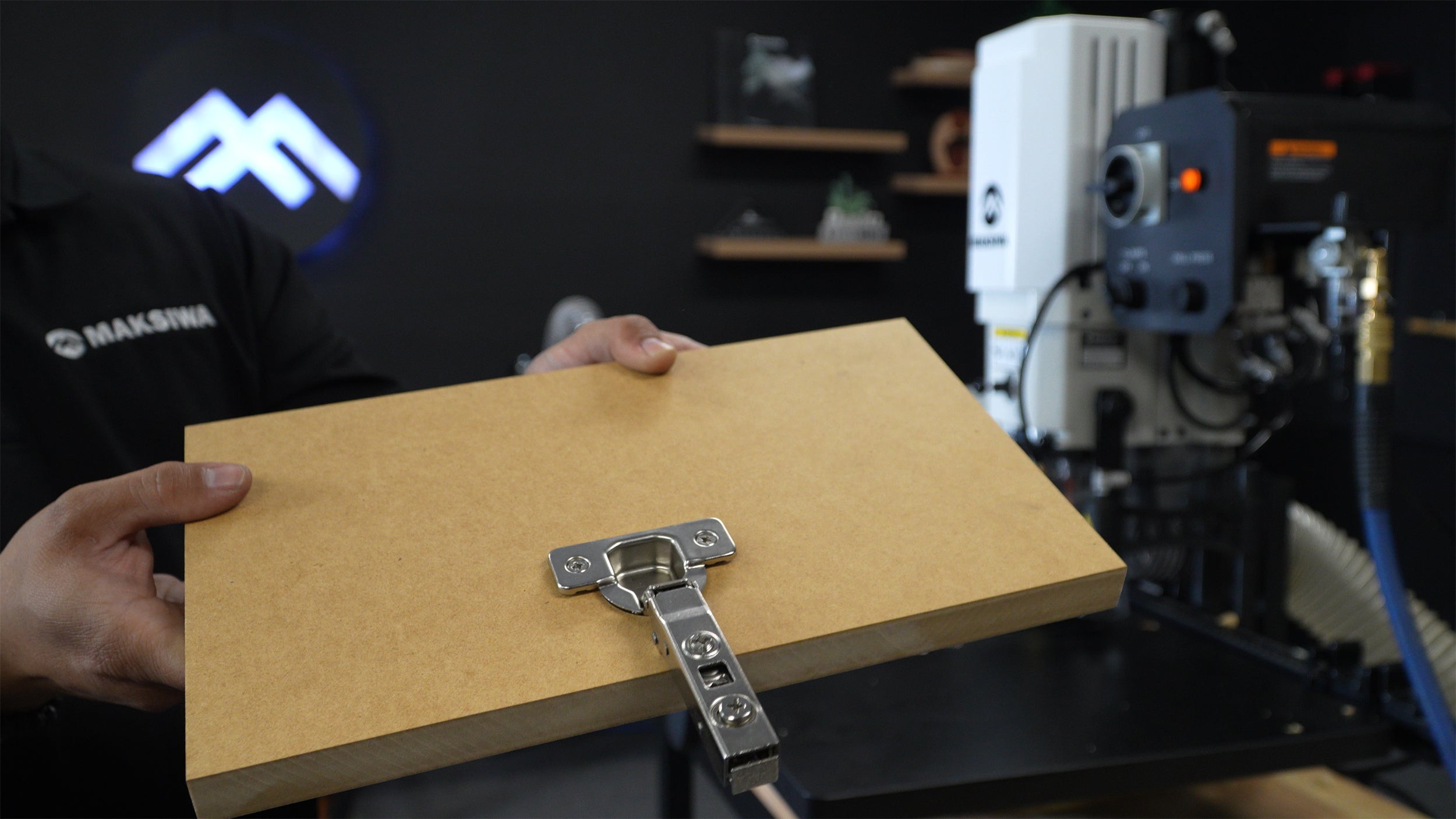

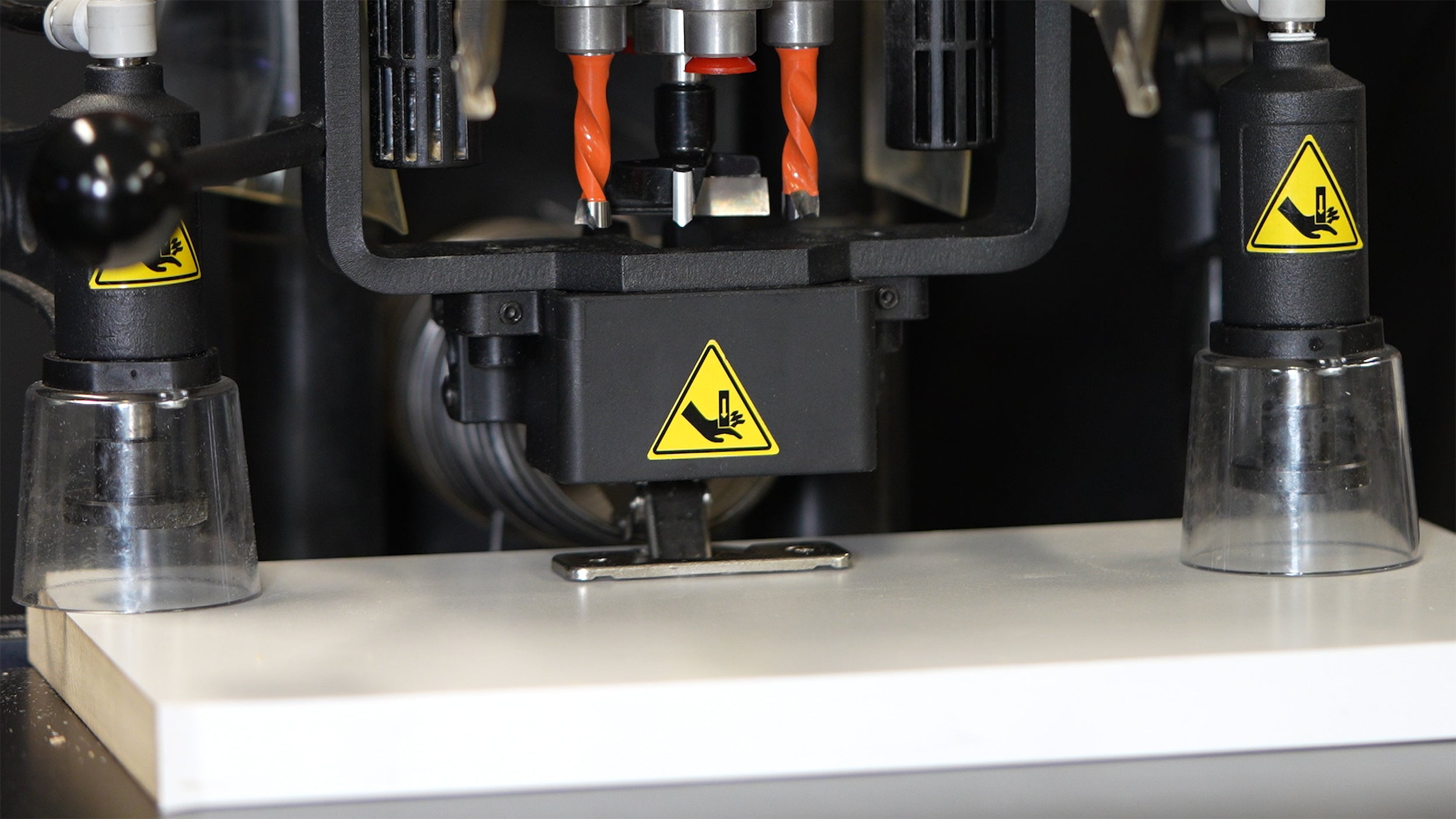

The Maksiwa HBM.1000 is a compact, high-precision machine designed for efficient hinge and hardware installation in cabinetry and furniture production. Powered by a 1.5HP motor, it delivers accurate 35 mm hinge cup bores using a carbide-tipped bit—ideal for hinges, mounting plates, and connectors.
With simple setup, easy adjustments, and reliable performance, the HBM.1000 is perfect for streamlining your hinge installation process while ensuring consistent results every time.
| Technical Information | HBM.1000 | Table header |
|---|---|---|
| Electrical specs | 1 Phase - 110V 13.6 AMPS / 220V 6.8 AMP | |
| Motor Specs | 1 HP / 1.1 KW 3400 RPM | |
| Table Size | 18” x 31 - 1/2” | 460 x 800 MM | |
| Machine table height | 5 - 3/8” 136MM | |
| Machine table depth | 2- 3/4” 70MM | |
| Hinge boring Bit Diameter | Carbide Tipped - 35mm | |
| Hinge boring Bit Rotation | Right | |
| Hinge boring shank | 10MM | |
| Hinge boring Length | 57MM | |
| Drill bits Diameter | Carbide Tipped - 8MM | |
| Drill boring Bits Rotation | Left | |
| Drill boring shank | 10 MM | |
| Machine Dimensions (LxWxH) | 33 7/16”x 28 3/8”x31 1/2” | 850mmx720mmx800mm | |
| Number of Stops | 2 Left / 2 Right | |
| Maximum Depth of Stroke | 4 - 5/16” | 110MM | |
| Boring distance center spindle | 0 - 2 3/4” | 0 - 70 MM | |
| Air requirement | 90 PSI - 3 SCFM | |
| Machine Weight | 50Kg 110LBS | |
| Avg Noise emissions | 78dB |
